Membrane Spring Clutch Cutaway Functional Model

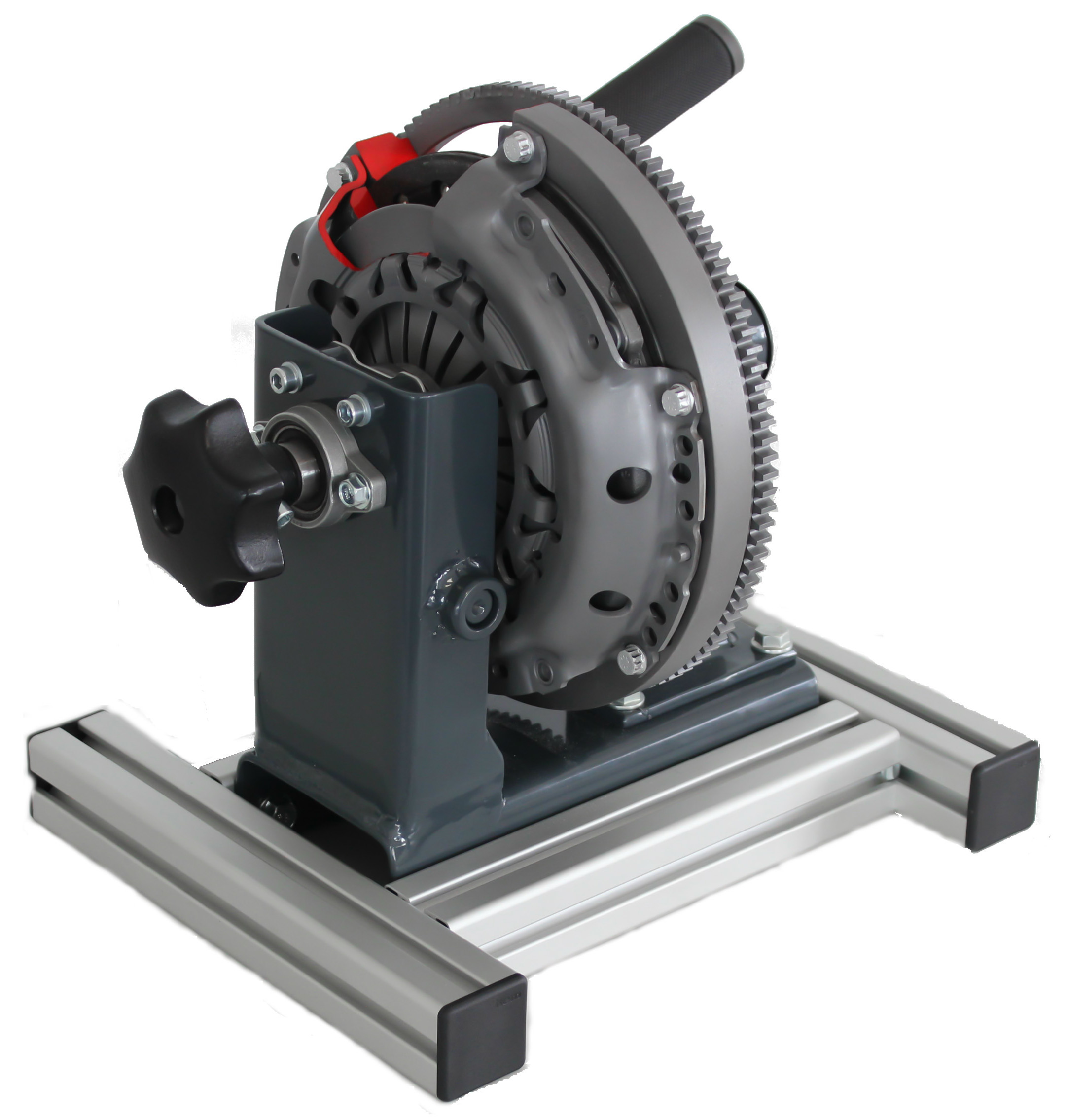

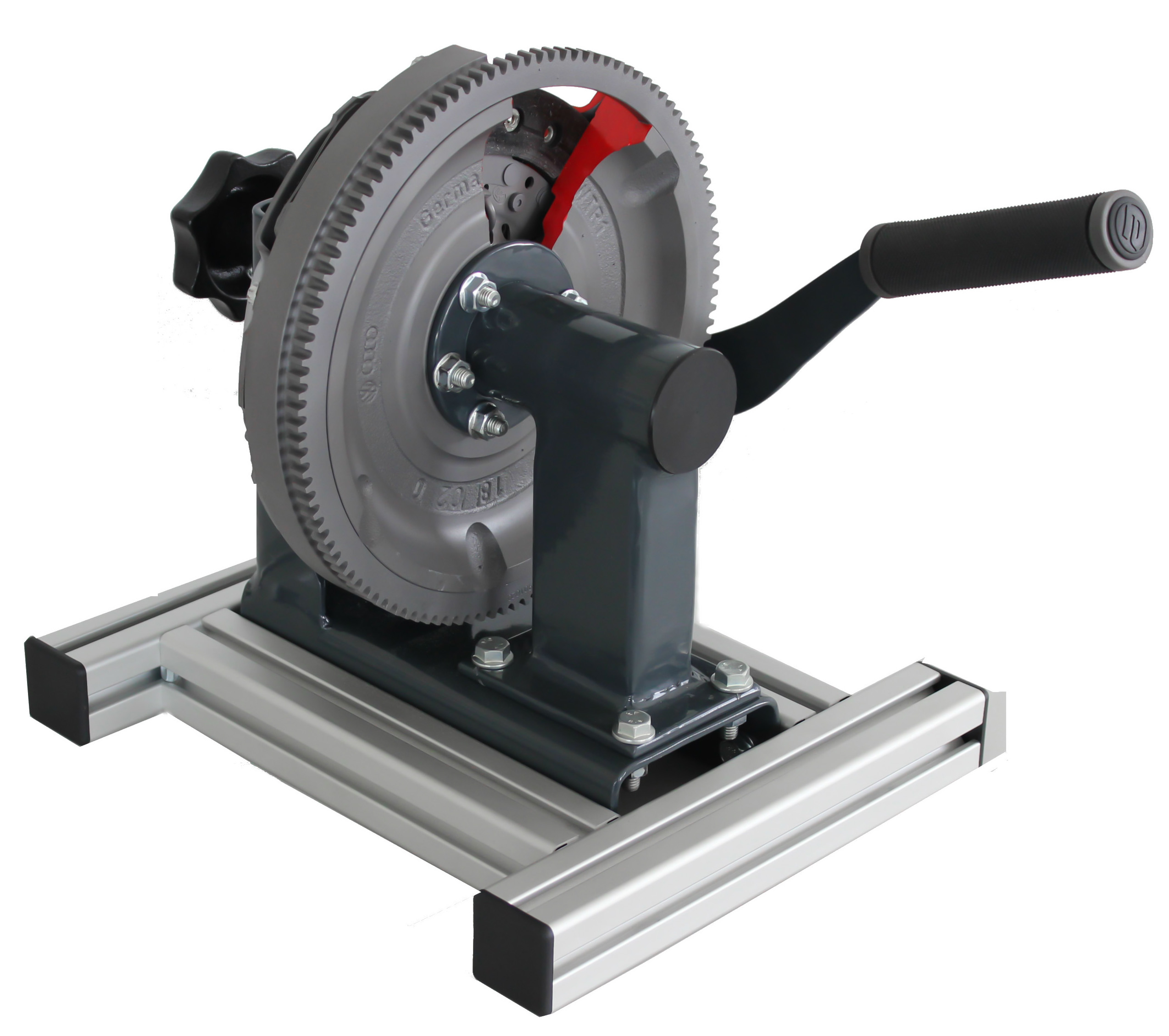

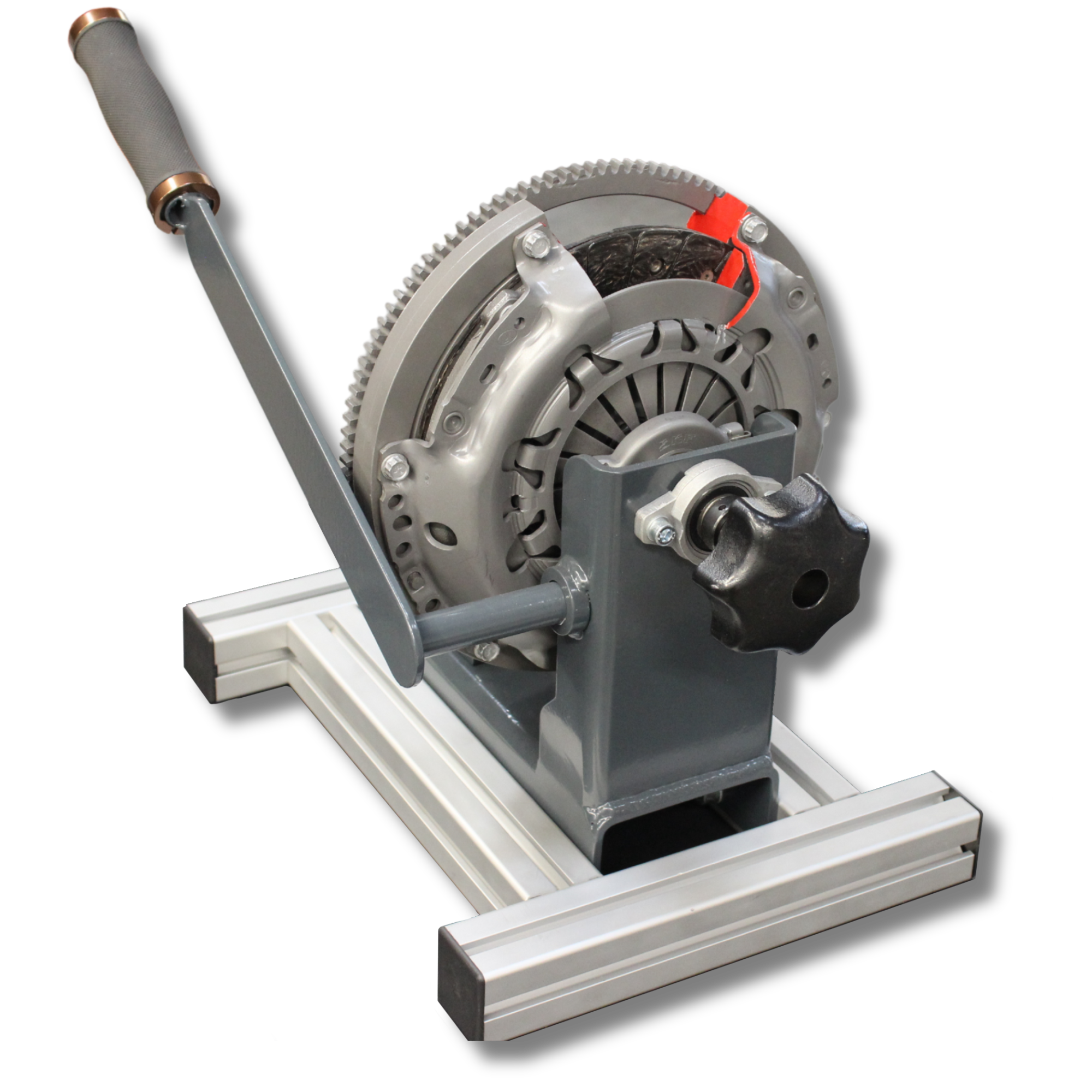

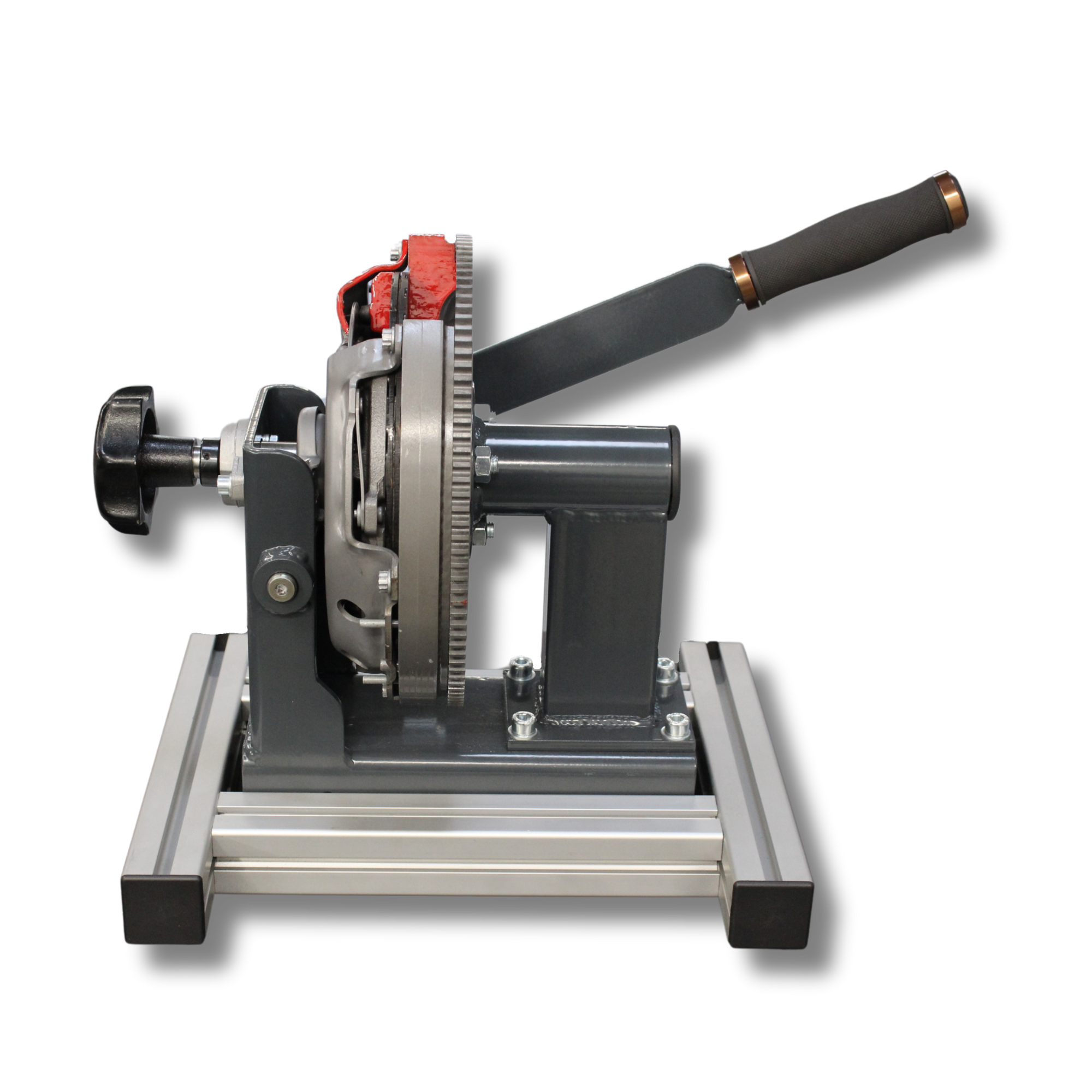

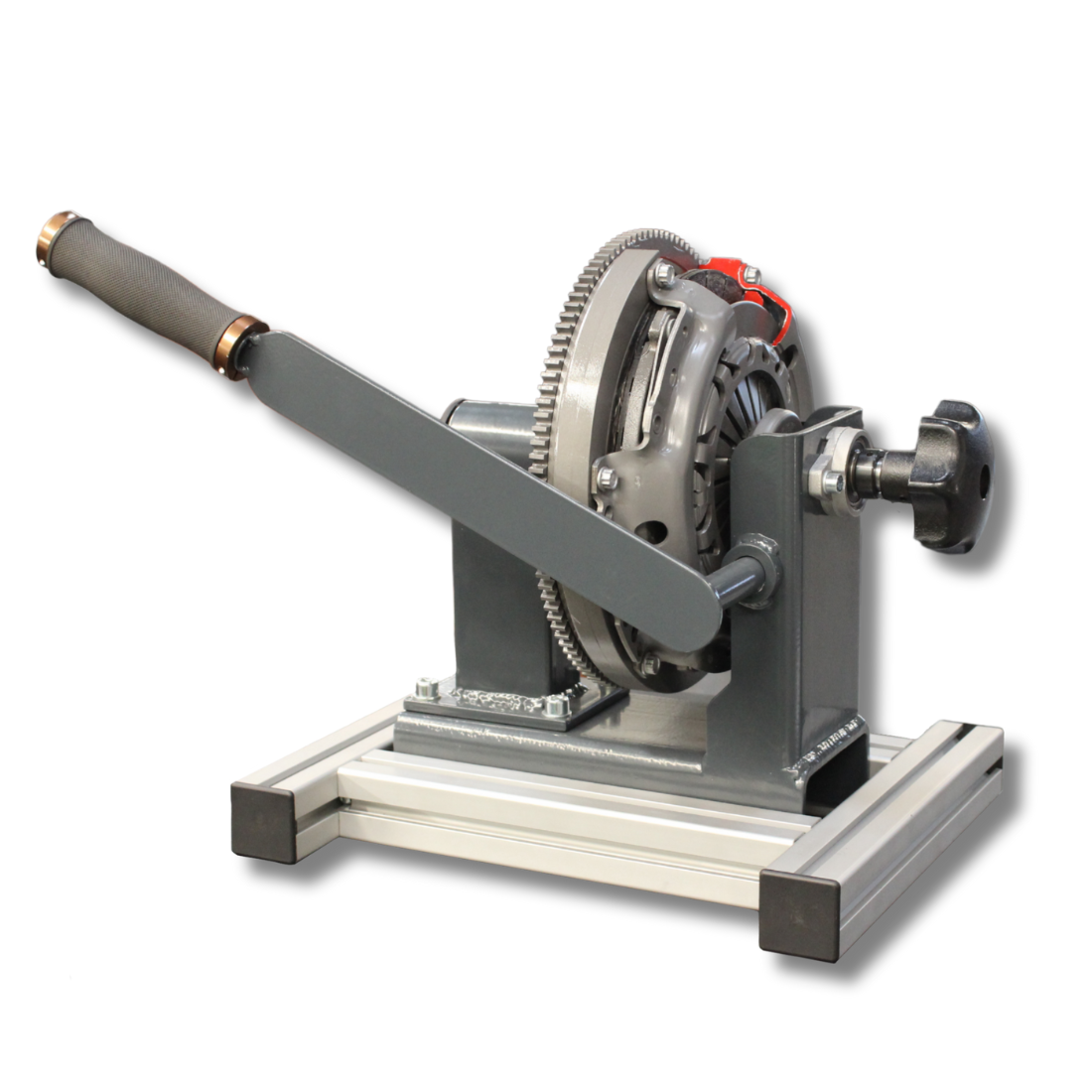

This training tool is a detailed cutaway model of a membrane spring clutch system, featuring a flywheel, clutch disc, pressure plate, throwout bearing, release fork, and pressing handle. The model is mounted on a durable aluminum base, allowing manual rotation of the clutch disc for hands-on observation. It is specifically designed for technical and vocational automotive education to demonstrate the mechanical and functional principles of a clutch system.

Features

  • Complete membrane spring clutch system, including flywheel, clutch disc, pressure plate, throwout bearing, and release fork.
  • Functional design allows manual rotation of the clutch disc to simulate real-world operation.

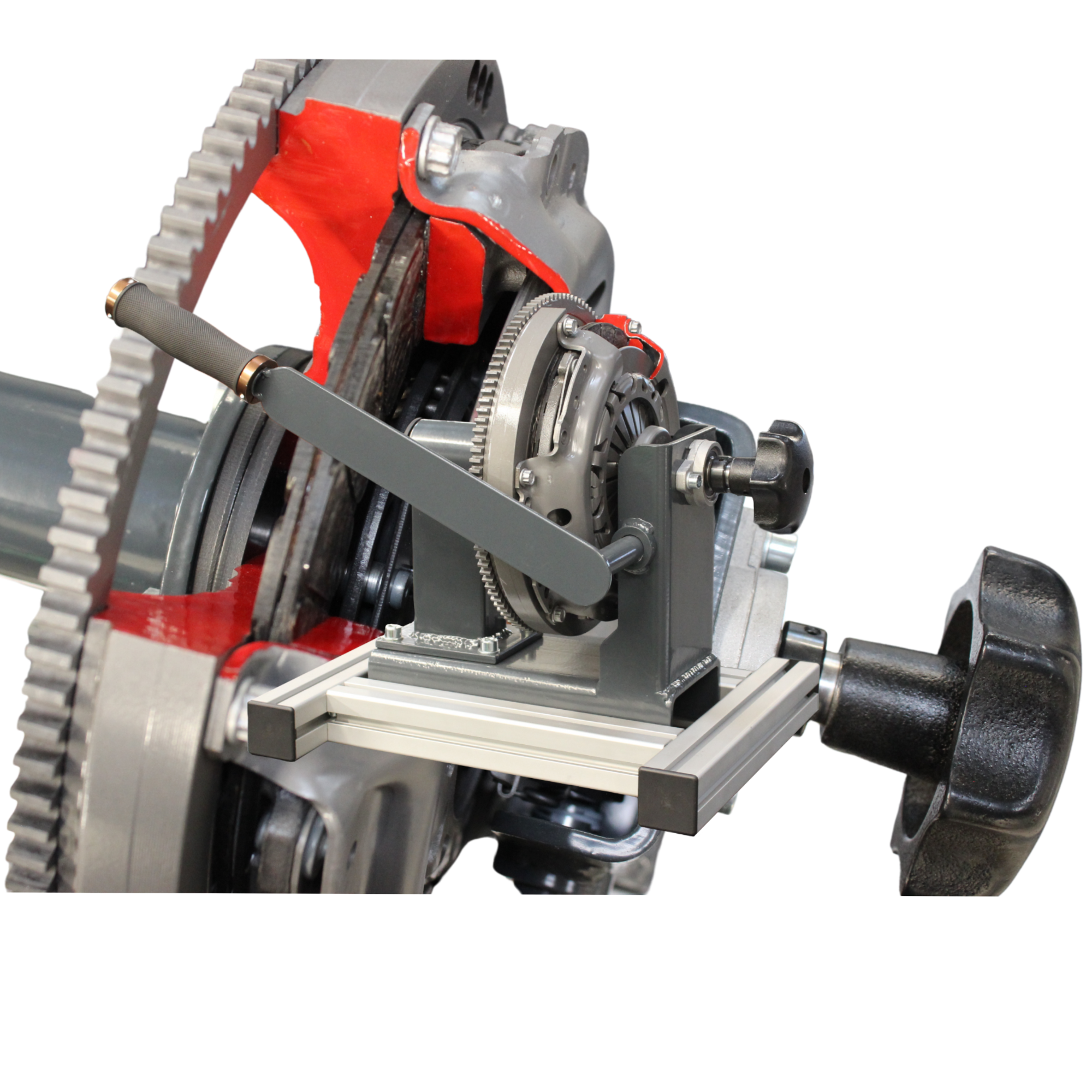

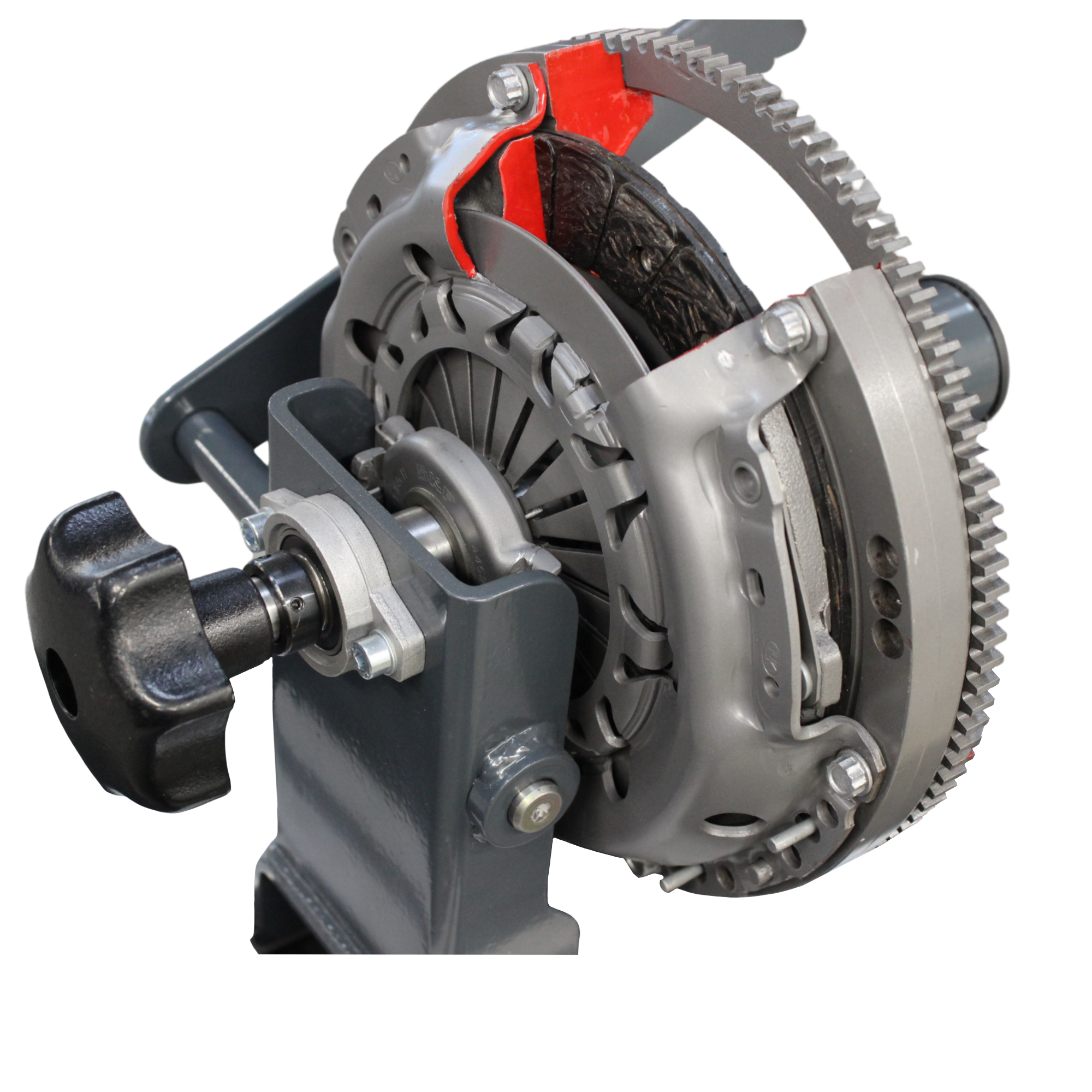

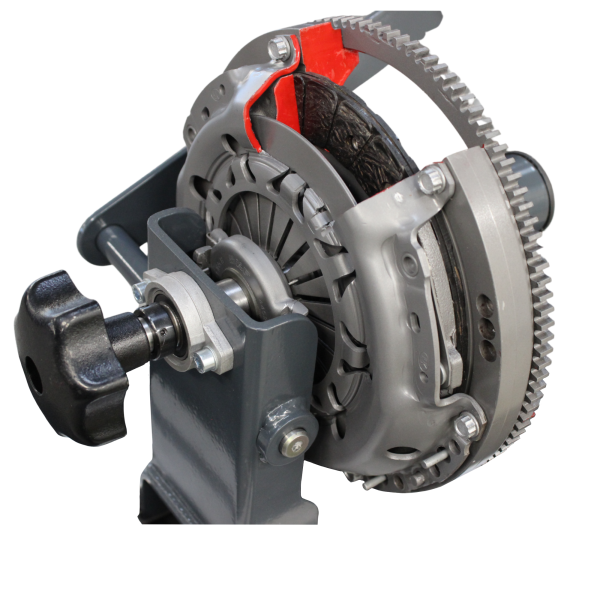

  • Cutaway model provides a clear view of internal mechanisms and component interactions.
  • Mounted on a sturdy aluminum base for long-term use and stability.
  • Designed specifically for technical and vocational training environments.

Value for Students

  • Provides direct interaction with a complete membrane spring clutch system, offering a clear understanding of how the clutch engages and disengages during operation.
  • Demonstrates the working principles of clutch components, including how the pressure plate, clutch disc, and flywheel interact to transfer power.
  • Enables detailed study of release mechanisms, showing the role of the throwout bearing and release fork in controlling clutch engagement.
  • Helps students understand manual control of torque transfer and power interruption in transmission systems.
  • Develops practical diagnostic skills by observing wear points and mechanical interaction between clutch components.

Value for Instructors

  • Simplifies demonstration of the clutch system’s functionality and its role in manual transmission vehicles, making lessons more engaging and interactive.
  • Allows educators to explain torque transfer and power interruption during gear changes with real, functional components.
  • Offers a controlled environment to teach troubleshooting and repair techniques for clutch systems.
  • Provides a durable and portable teaching tool, ensuring easy integration into classroom or workshop settings.
  • Enhances lessons by combining theoretical teaching with practical application using a functional model.

Specifications

  • Dimensions: 250 x 200 x 200 mm (9.84 x 7.87 x 7.87 inch)
  • Weight: 10 kg (22 lbs)
  • Product number: IDSS01

Other

  • Dimensions (height x length x width) 500x500x300mm
  • Nett weight approx.: 17 Kg
  • Made in Lithuania
