Turbosupercharger With Waste Gate Valve (On Base) Educational Trainer

Product Description

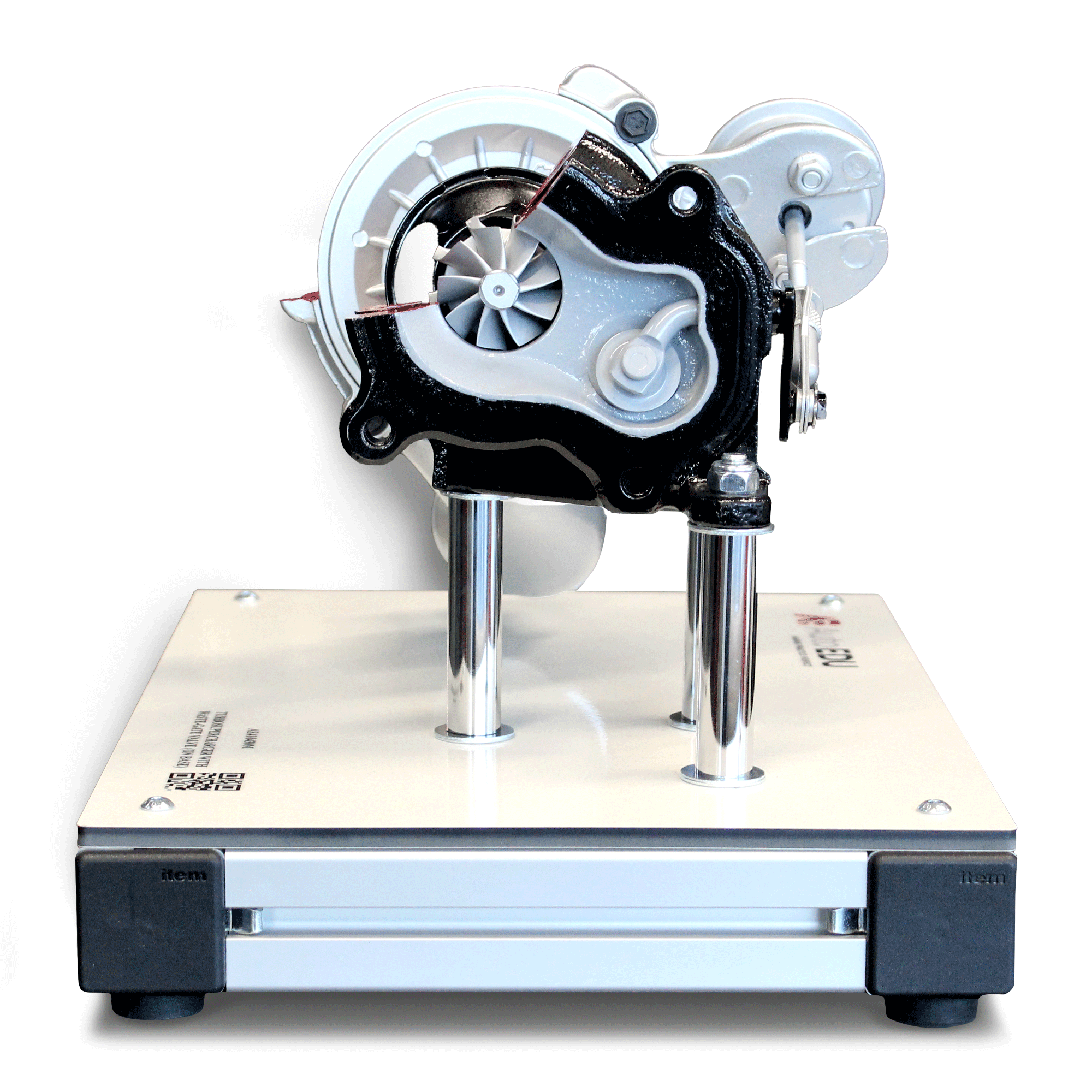

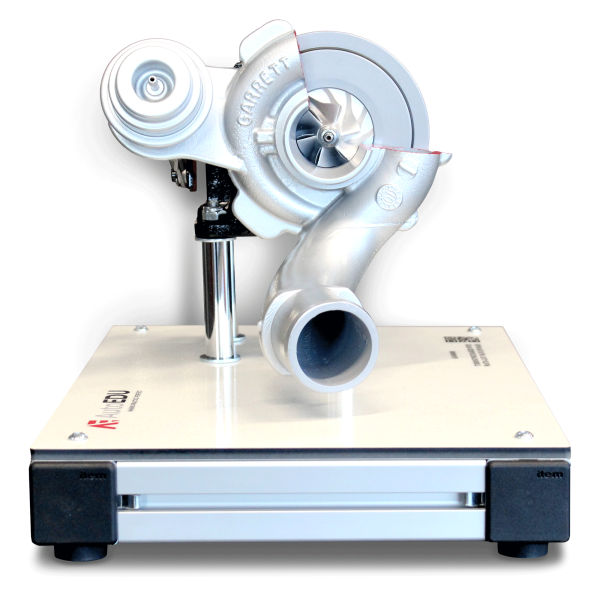

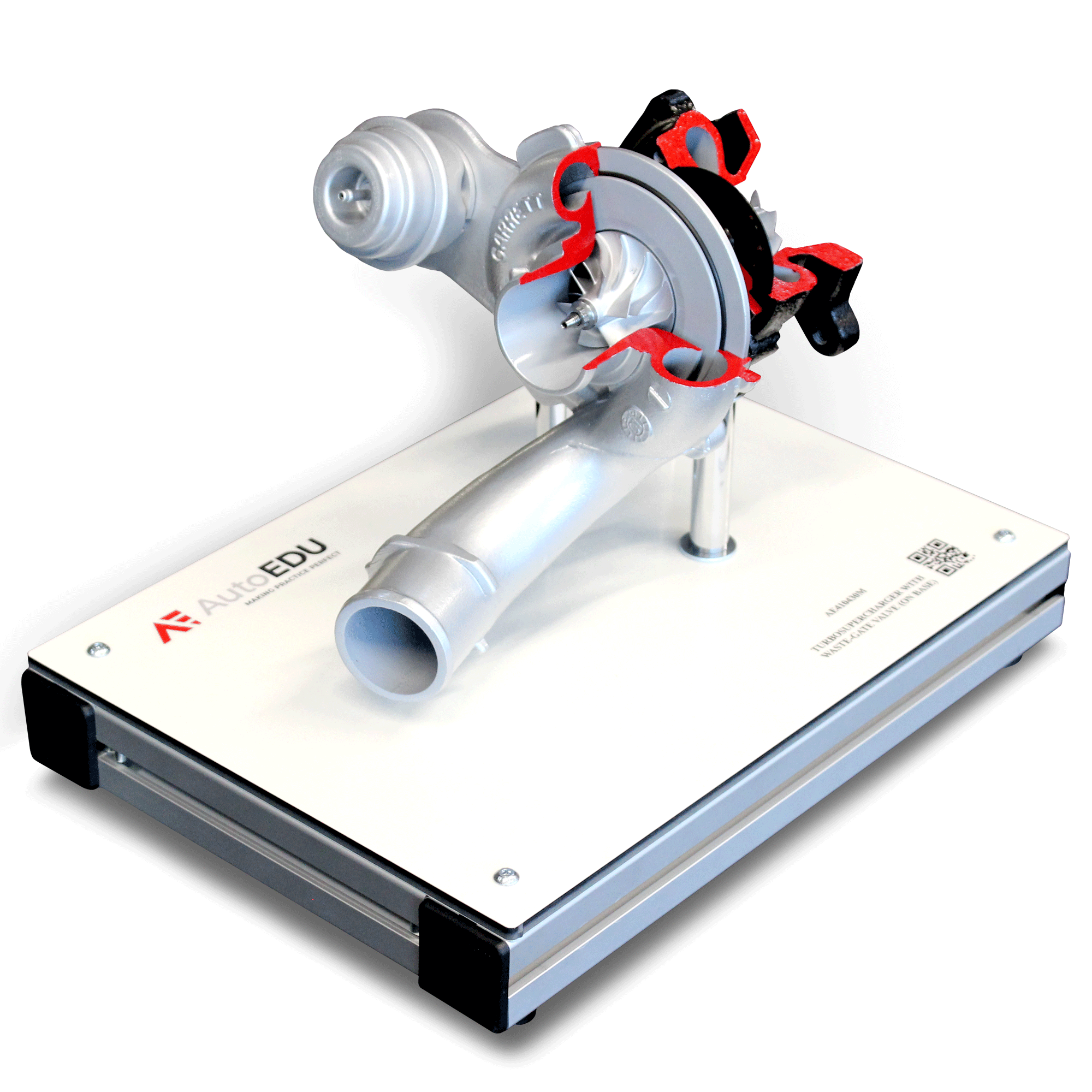

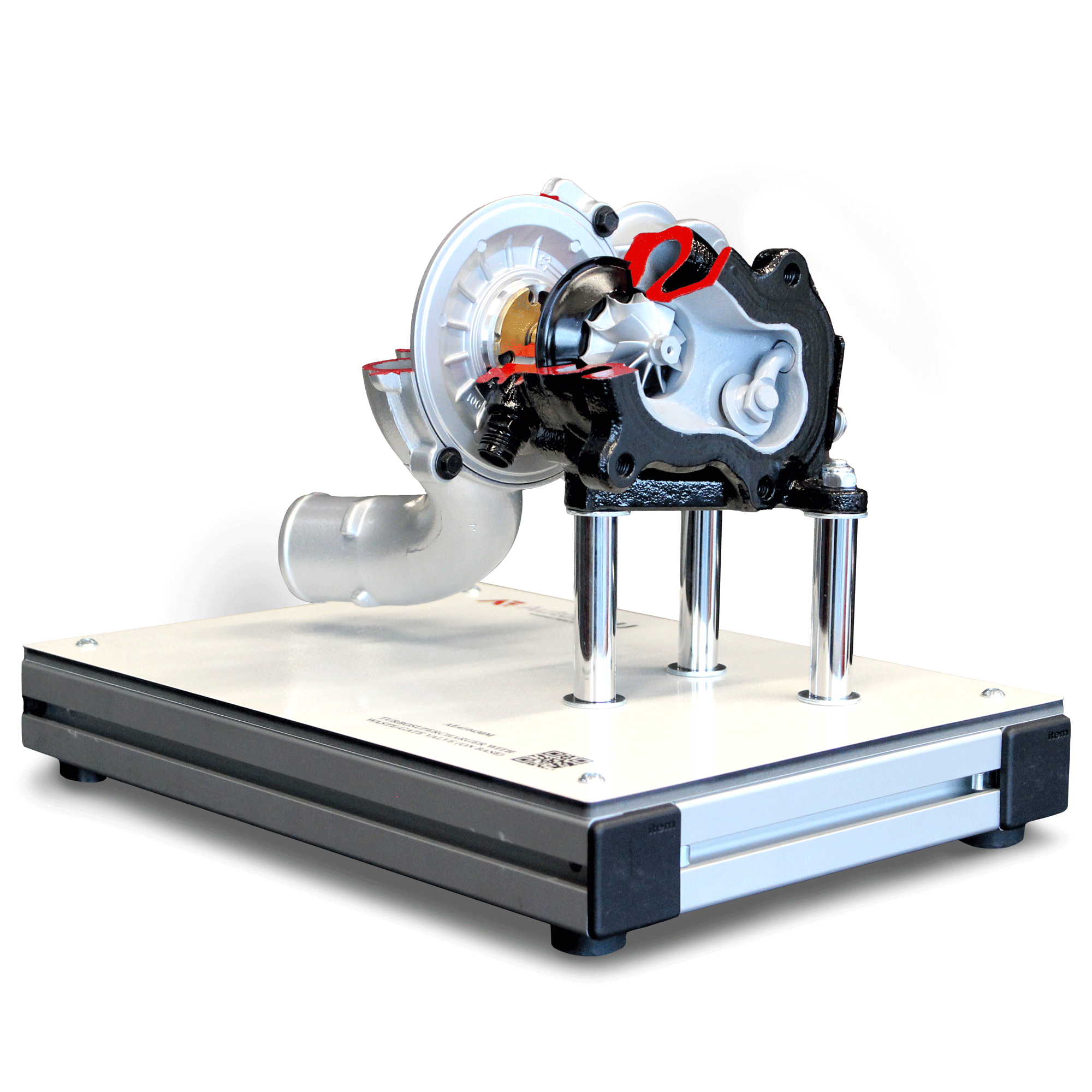

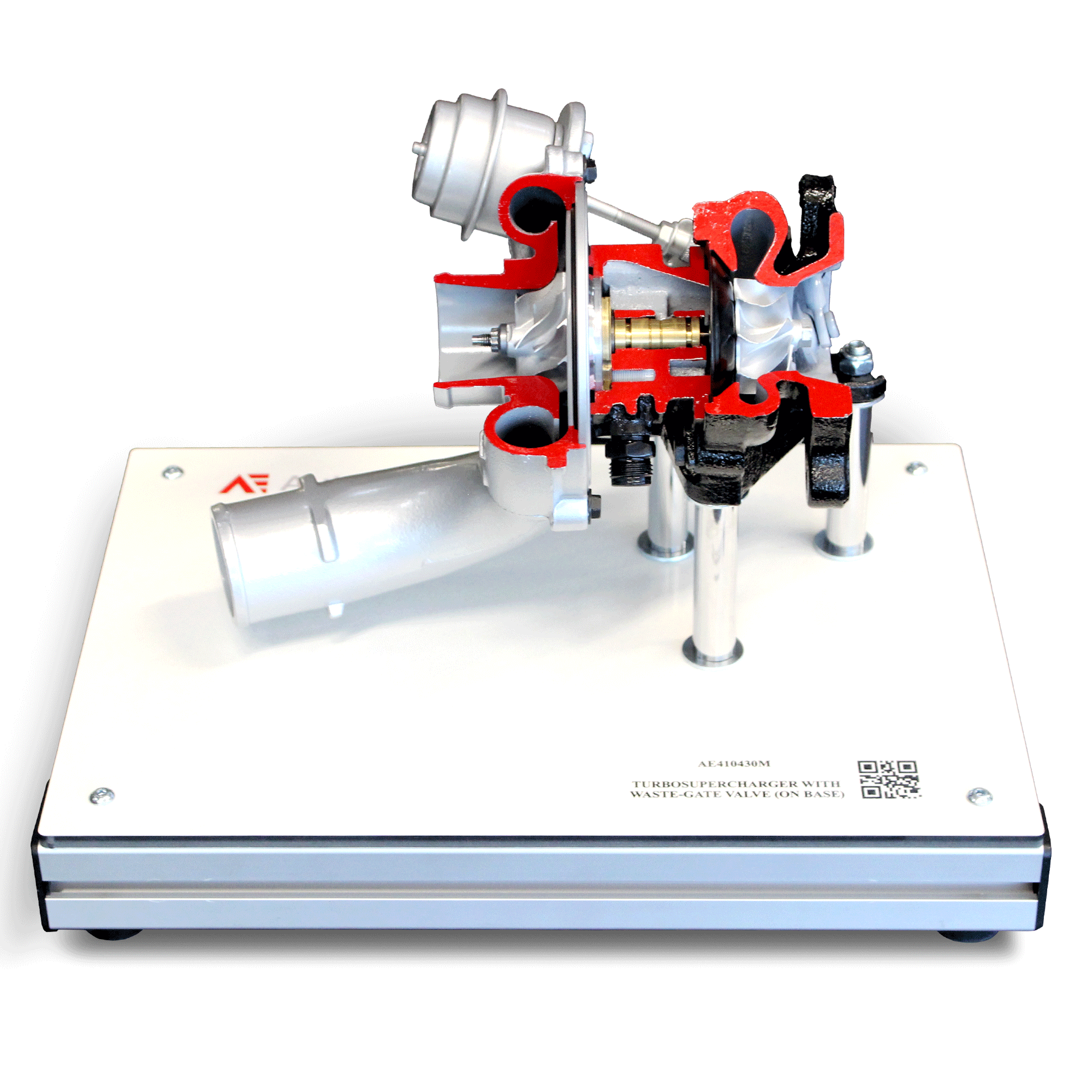

Turbosupercharger With Waste Gate Valve (On Base) Educational Trainer AE410430M

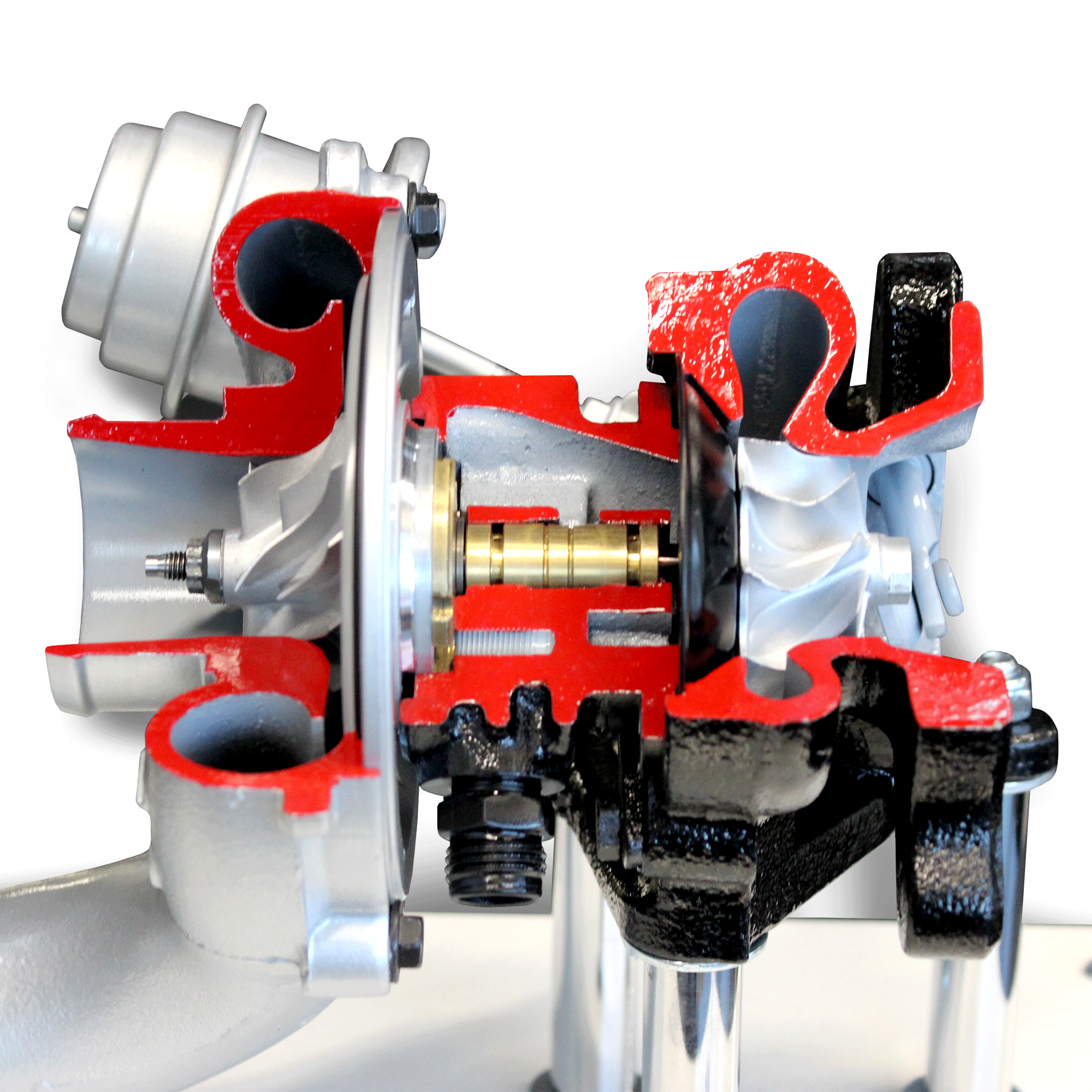

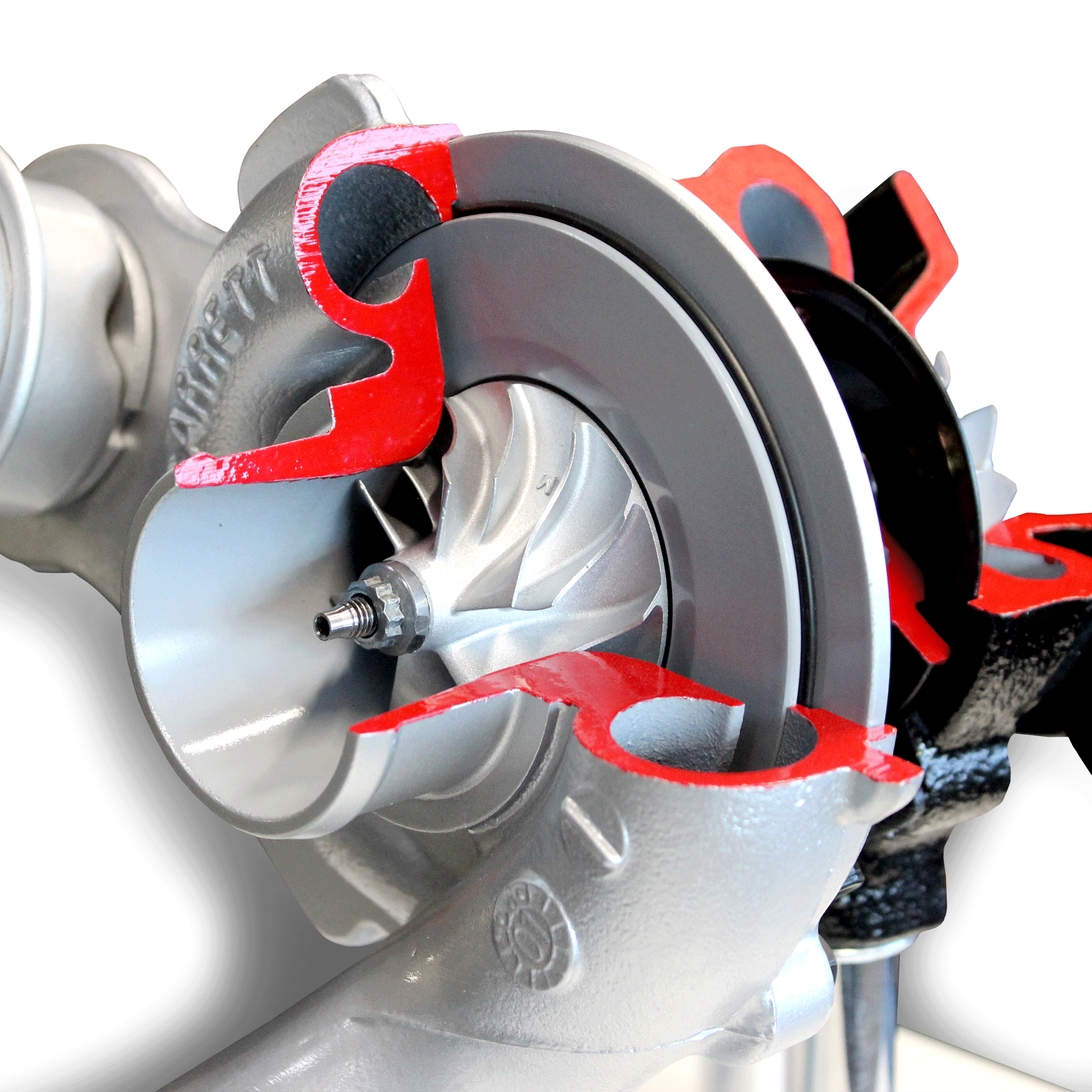

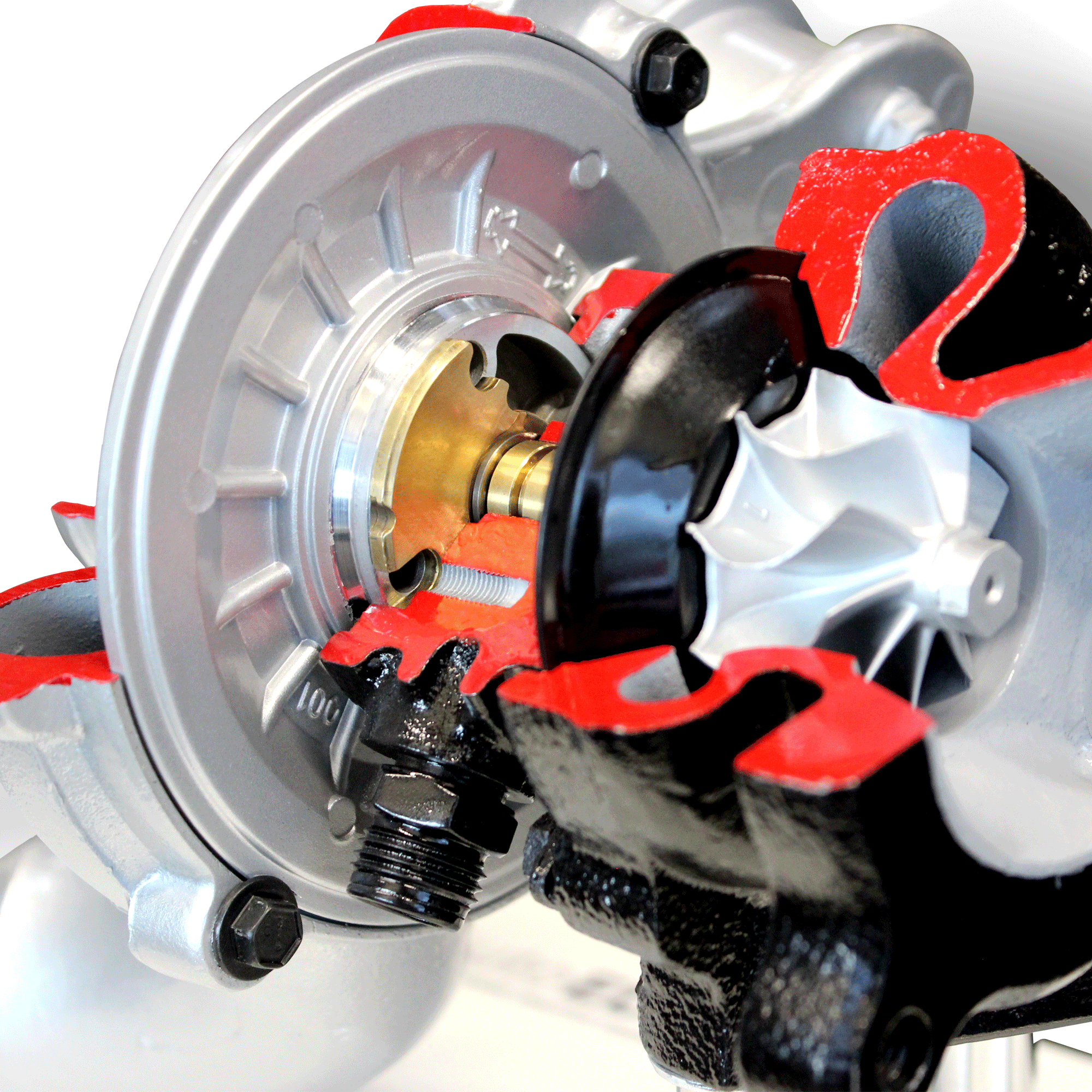

Turbosupercharger with waste-gate valve trainer explore turbocharging systems through its detailed components, including the compressor manifold, diffuser, compressor impeller, antifriction bearing, turbine impeller, distributor, volute, and lube oil filter. This educational tool incorporates a fully functional waste-gate valve, demonstrating its role in regulating exhaust gas flow and managing boost pressure.

Features

• Key turbocharger components such as the compressor manifold, diffuser, compressor impeller, antifriction bearing, turbine impeller, distributor, volute, and lube oil filter.

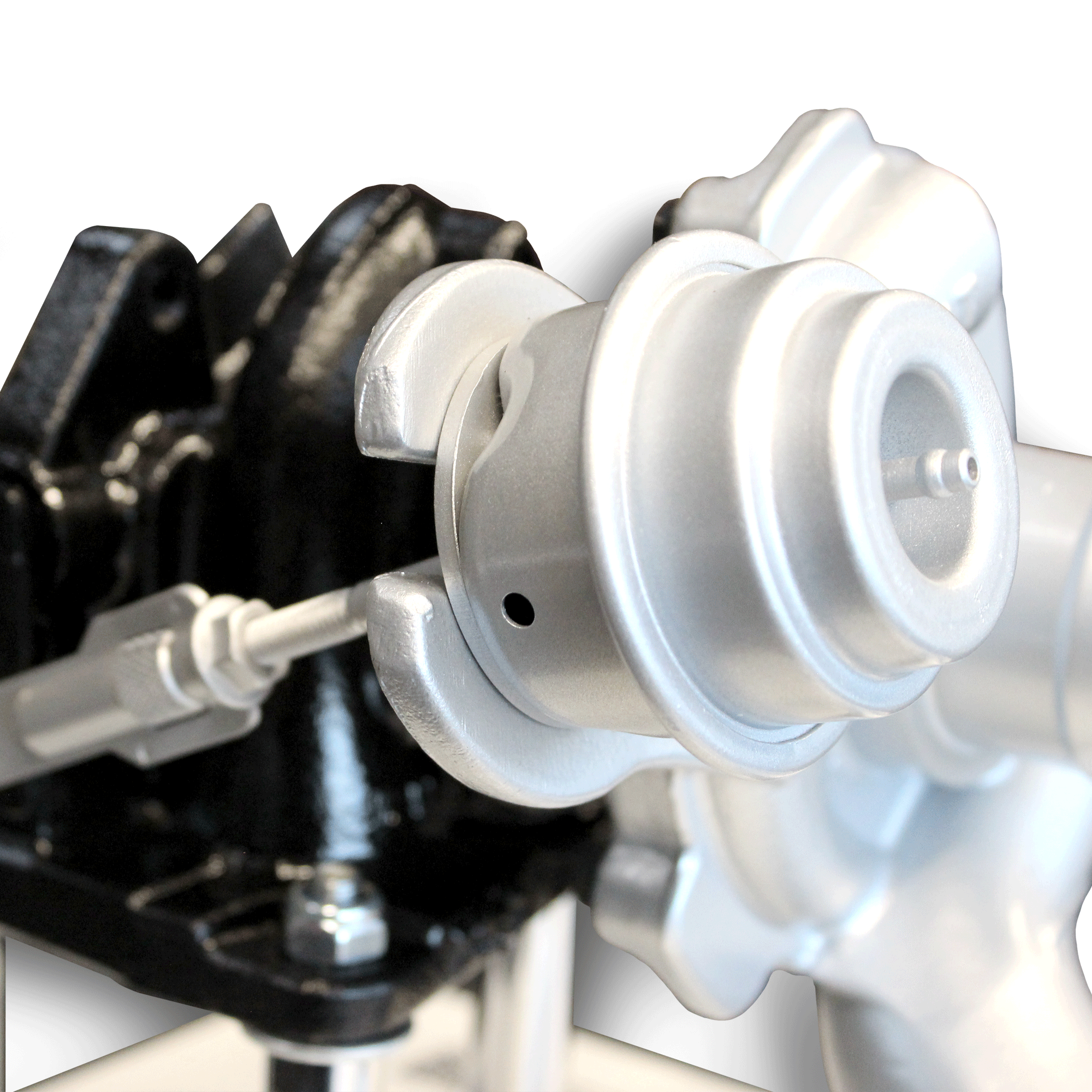

• Demonstrates the operation of a waste-gate valve, showcasing its role in regulating exhaust gas flow and maintaining optimal turbocharger performance.

• Allows for clear observation of the operational dynamics of both the turbocharger and waste-gate valve, including valve movement and its effect on gas flow.

Value for Students

• Experience with critical components of a turbosupercharger, including the compressor manifold, diffuser, compressor impeller, antifriction bearing, turbine impeller, distributor, volute, and lube oil filter.

• The trainer includes a waste-gate valve mechanism that regulates the feed pressure to the turbine. Students will learn how the valve operates to manage exhaust gas flow, including the dynamics of valve closure and opening, and its impact on turbine efficiency. They will observe how the valve restricts pressure, allowing only a portion of the exhaust gases to pass through the turbine when the pressure exceeds the predetermined threshold.

• The educational trainer provides a visual and practical representation of how a turbocharger compresses air to increase engine efficiency. Students will understand the role of each component in enhancing engine performance and how the waste-gate valve contributes to maintaining optimal boost levels.

• With components mounted on a base, students can easily manipulate and interact with the trainer to observe real-time operational changes, fostering a deeper comprehension of turbocharger mechanics and waste-gate functionality.

Value for Instructors

• The trainer offers a clear, hands-on method for demonstrating the intricacies of turbocharger systems and waste-gate valves. Teachers can effectively illustrate both the theoretical and practical aspects of turbocharging technology.

• Built with precision, the trainer’s components are mounted on a stable base, ensuring durability and ease of use in educational settings. This design supports a variety of teaching scenarios, from individual study to group demonstrations.

• The trainer’s design allows for seamless integration into automotive training programs, making it a versatile tool for enhancing curriculum content related to turbocharging and waste-gate systems.

Specifications

• Dimensions: 300 x 300 x 300 mm (11.81 in×11.81 in×11.81 in)

• Weight: 6 kg (13 lb)

• Product number: AE410430M
