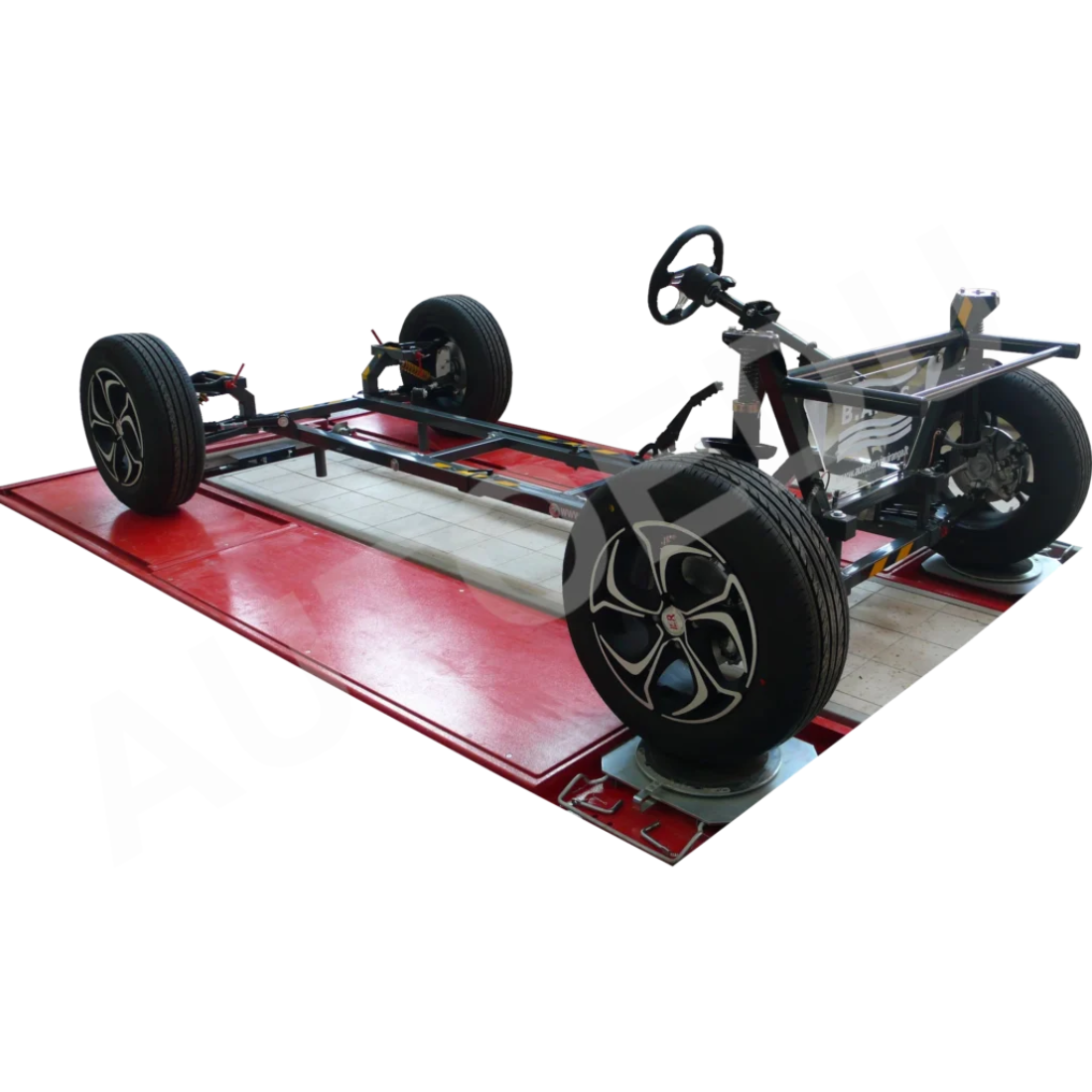

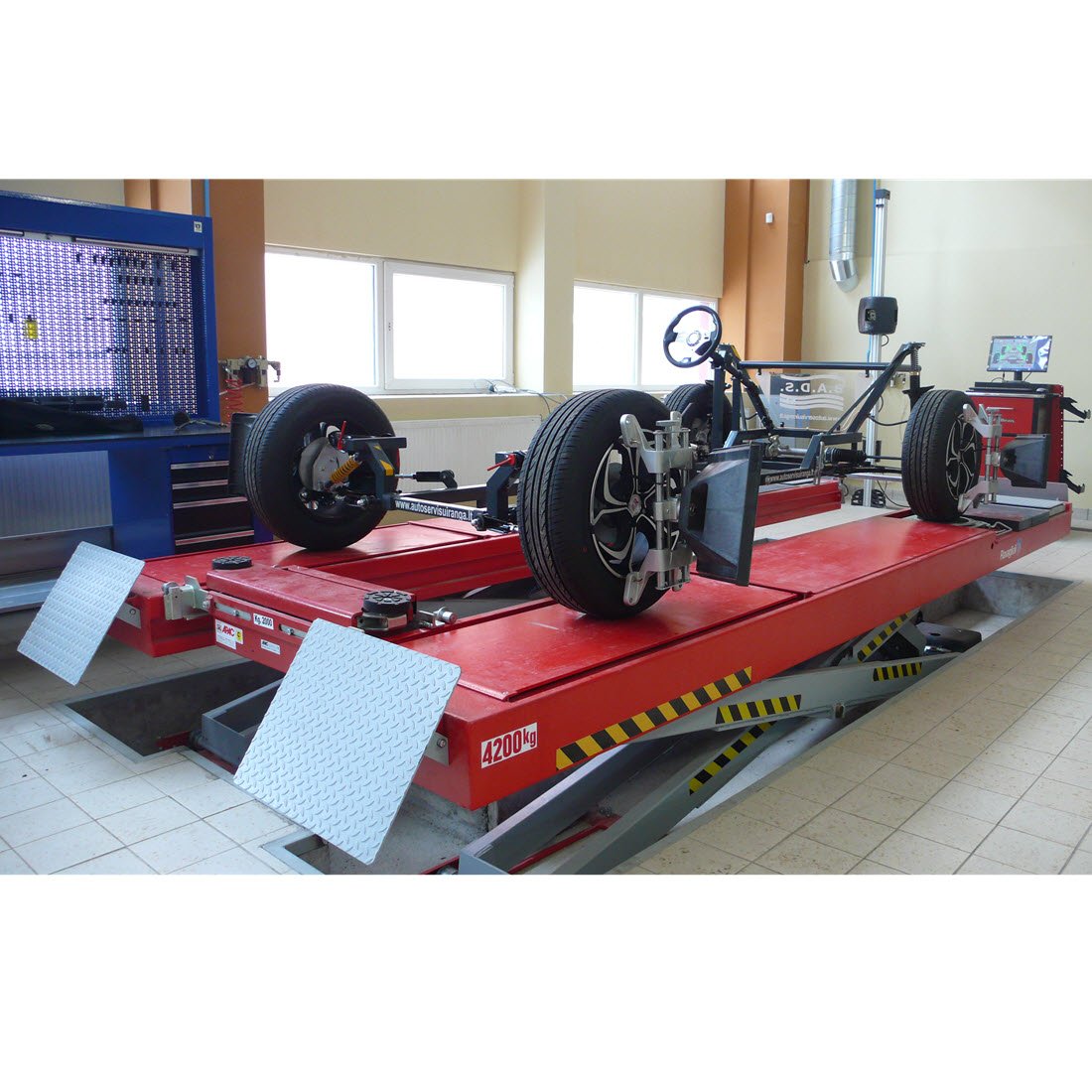

Wheel alignment training Educational Trainer MSVAZ01

  • Wheel alignment training educational trainer is an advanced instructional tool designed to demonstrate the intricacies of wheel alignment and suspension geometry.

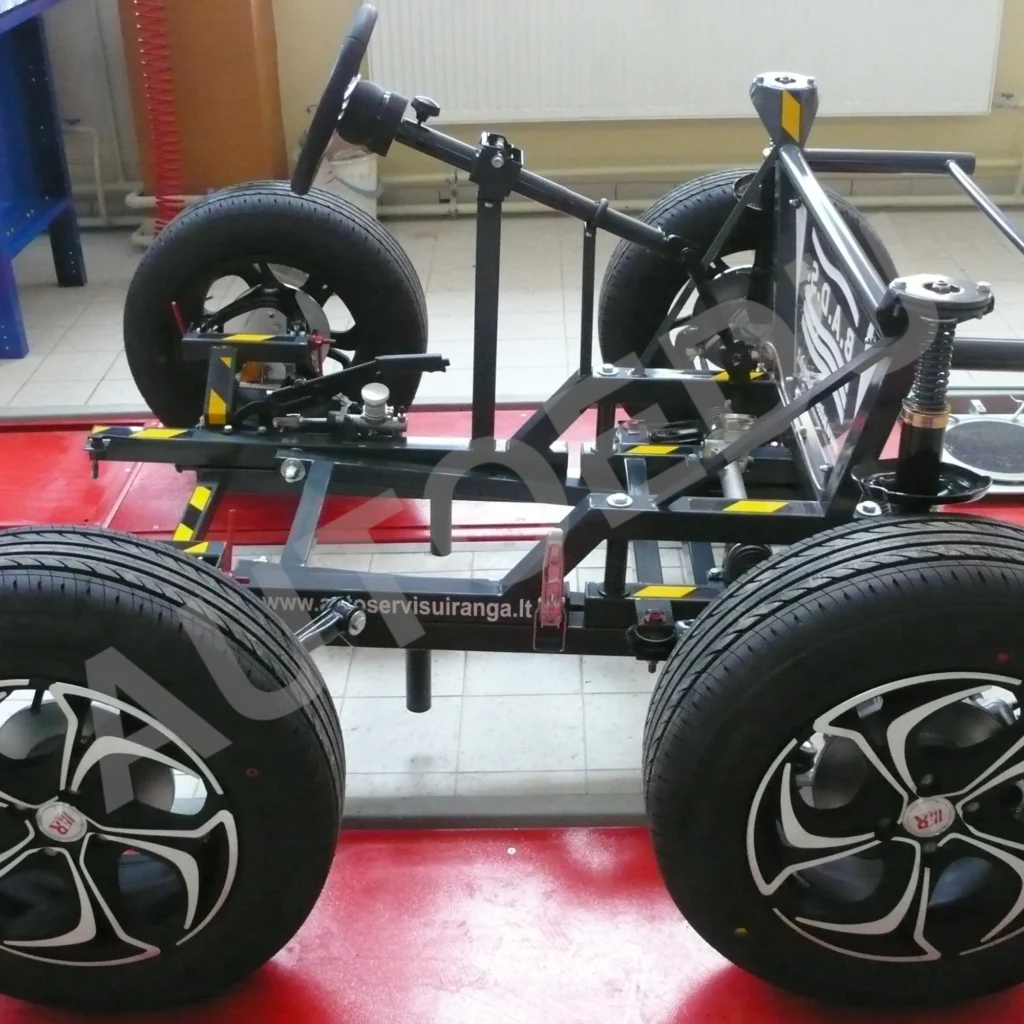

  • Featuring a McPherson-type front suspension and a multi-link rear suspension, this stand offers comprehensive training capabilities for adjusting camber, caster, toe, and steering axis inclination angles.
  • All suspension components are visible and easily adjustable, making this an ideal resource for automotive technical education.

Features

  • Modify toe, camber, and caster angles on both front and rear axles.

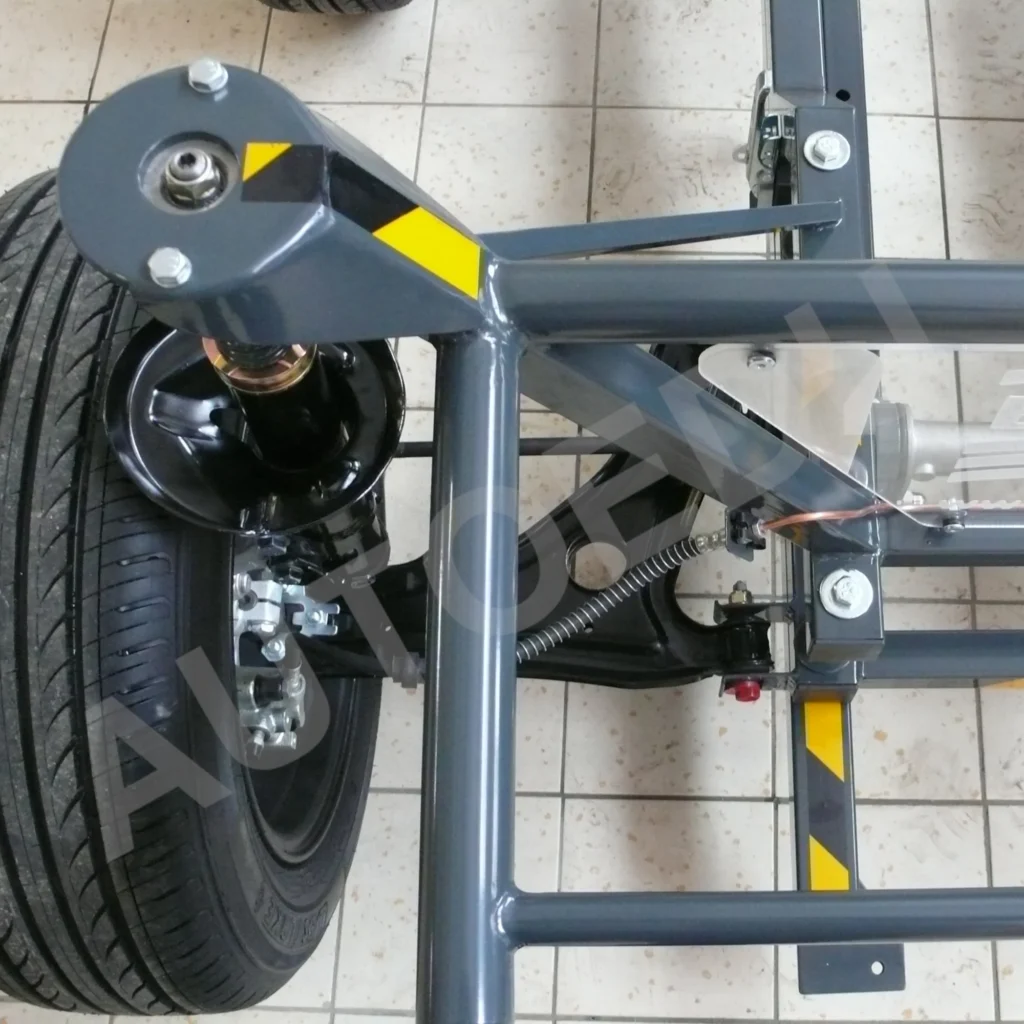

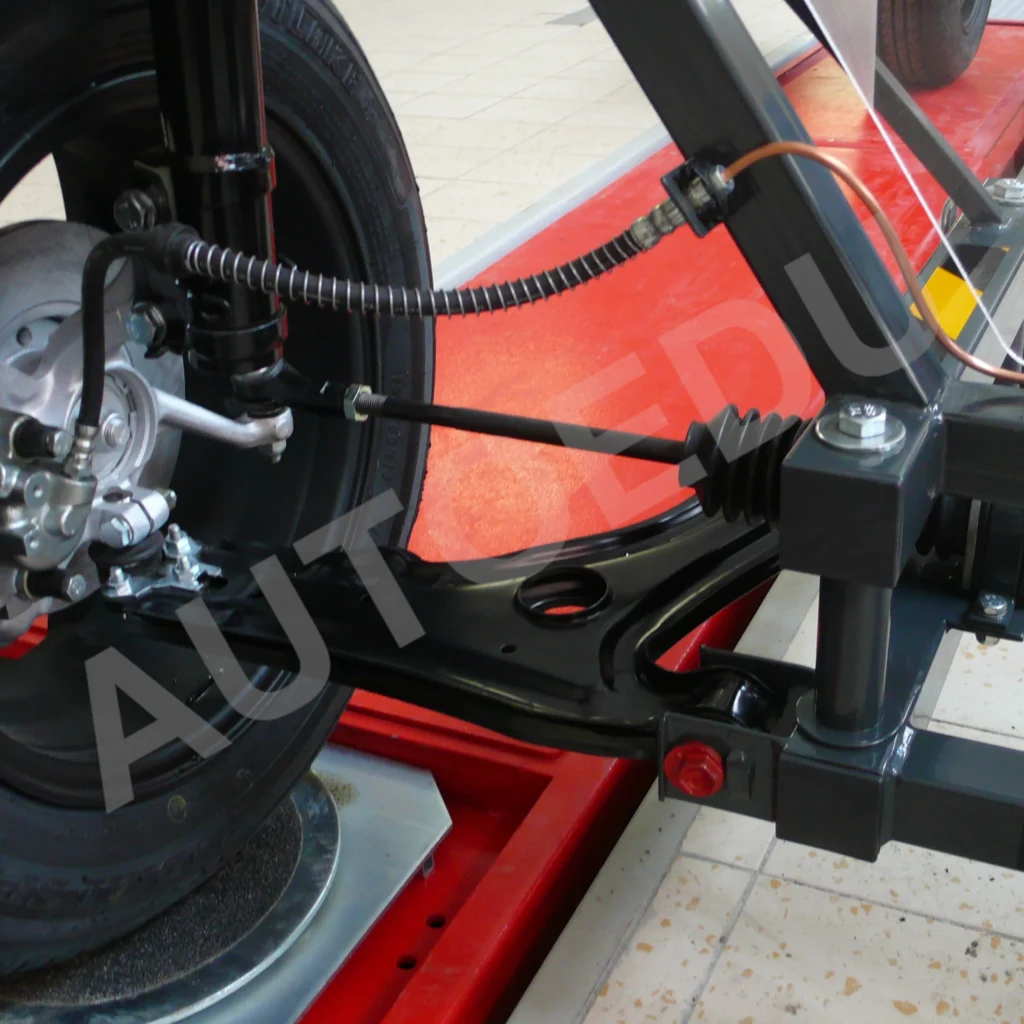

  • McPherson-type front suspension, 8 adjustment points for precise alignment settings.

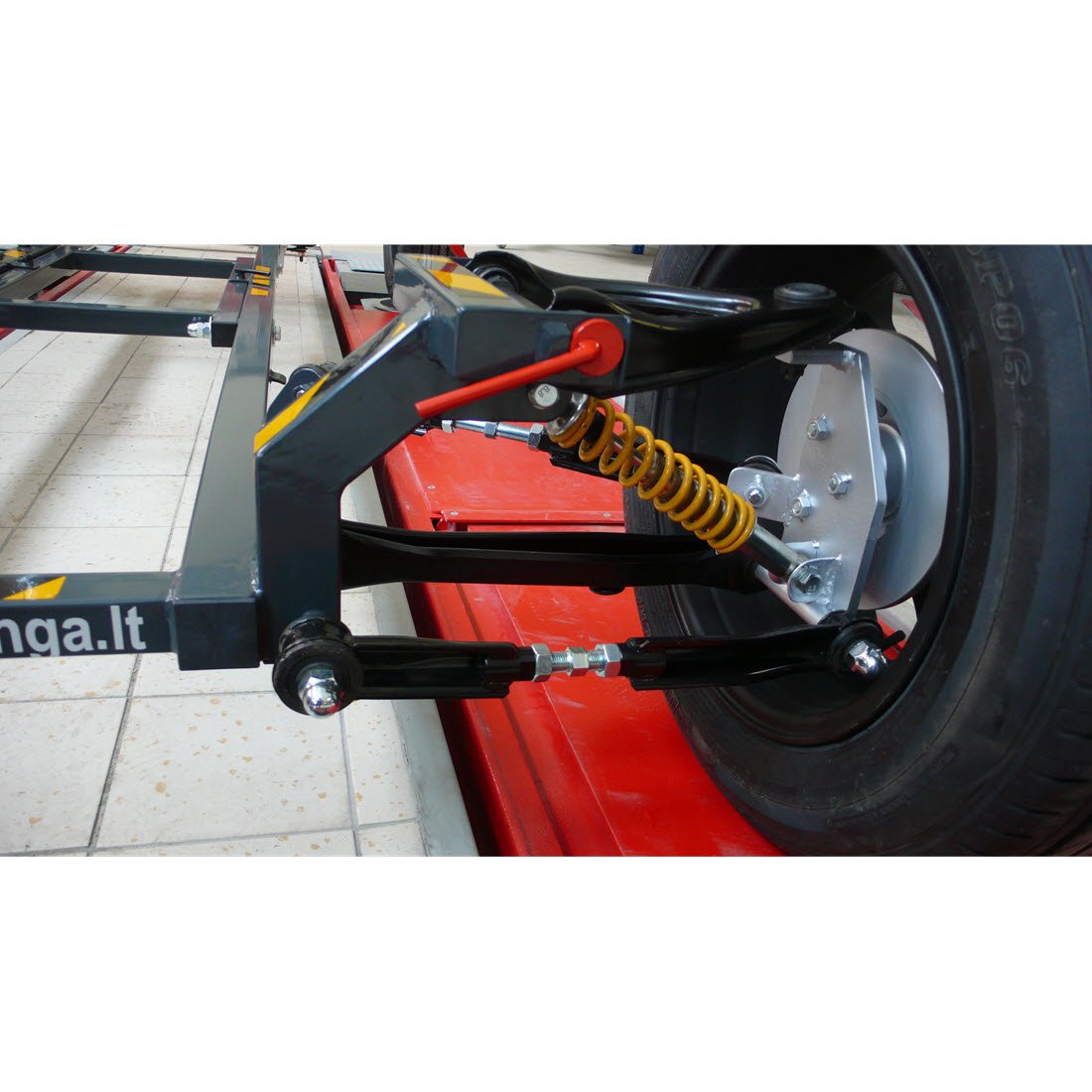

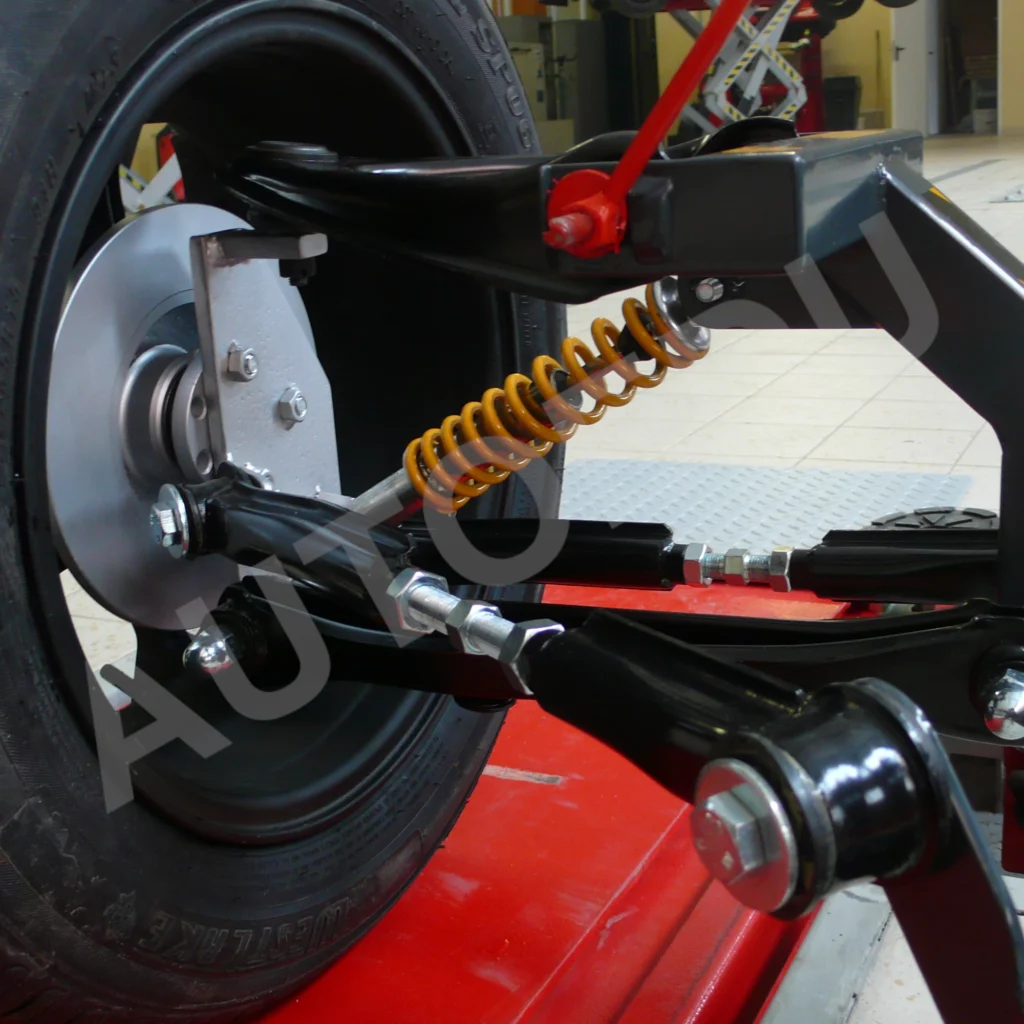

  • Multi-Link rear suspension, features 3 adjustment points for detailed angle modifications.

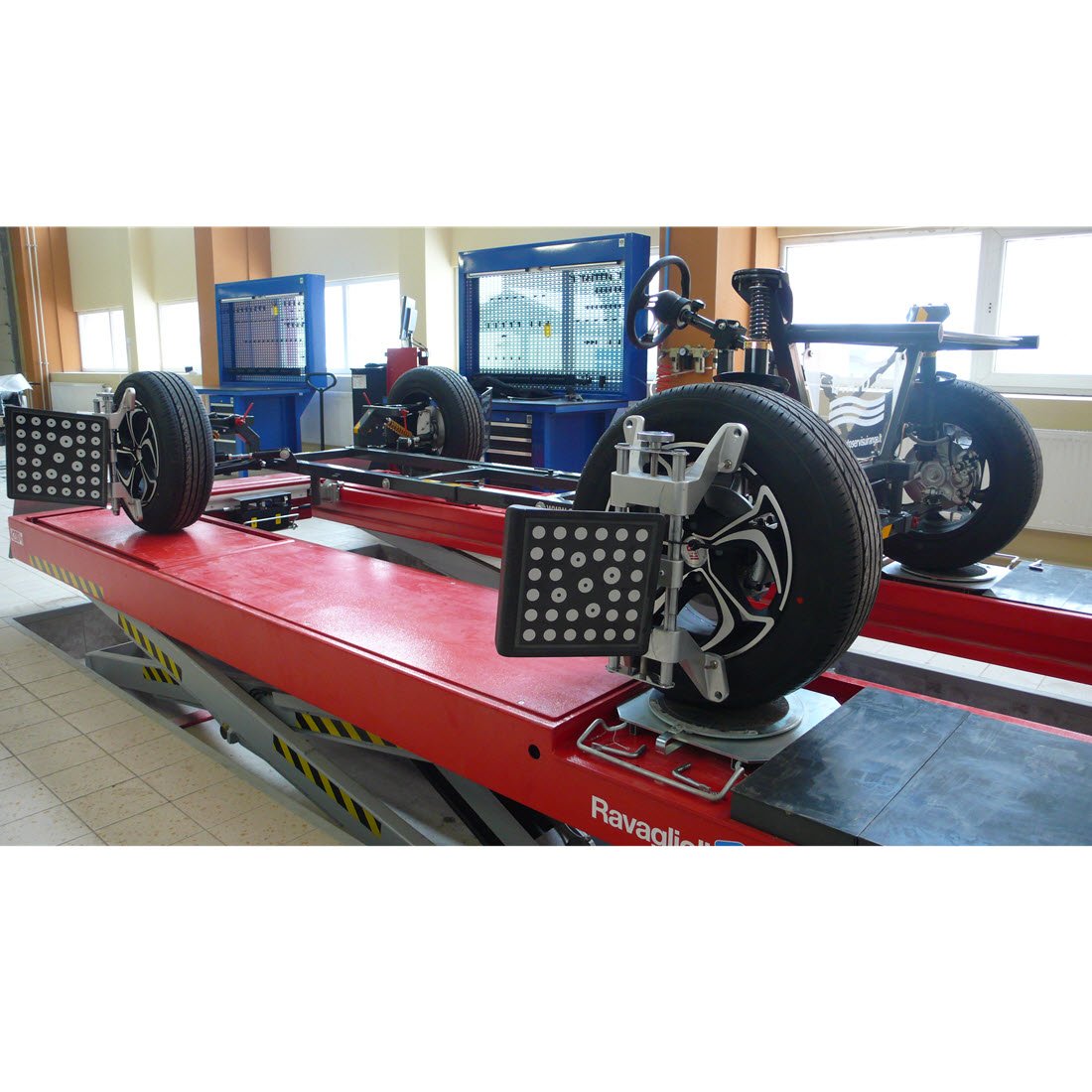

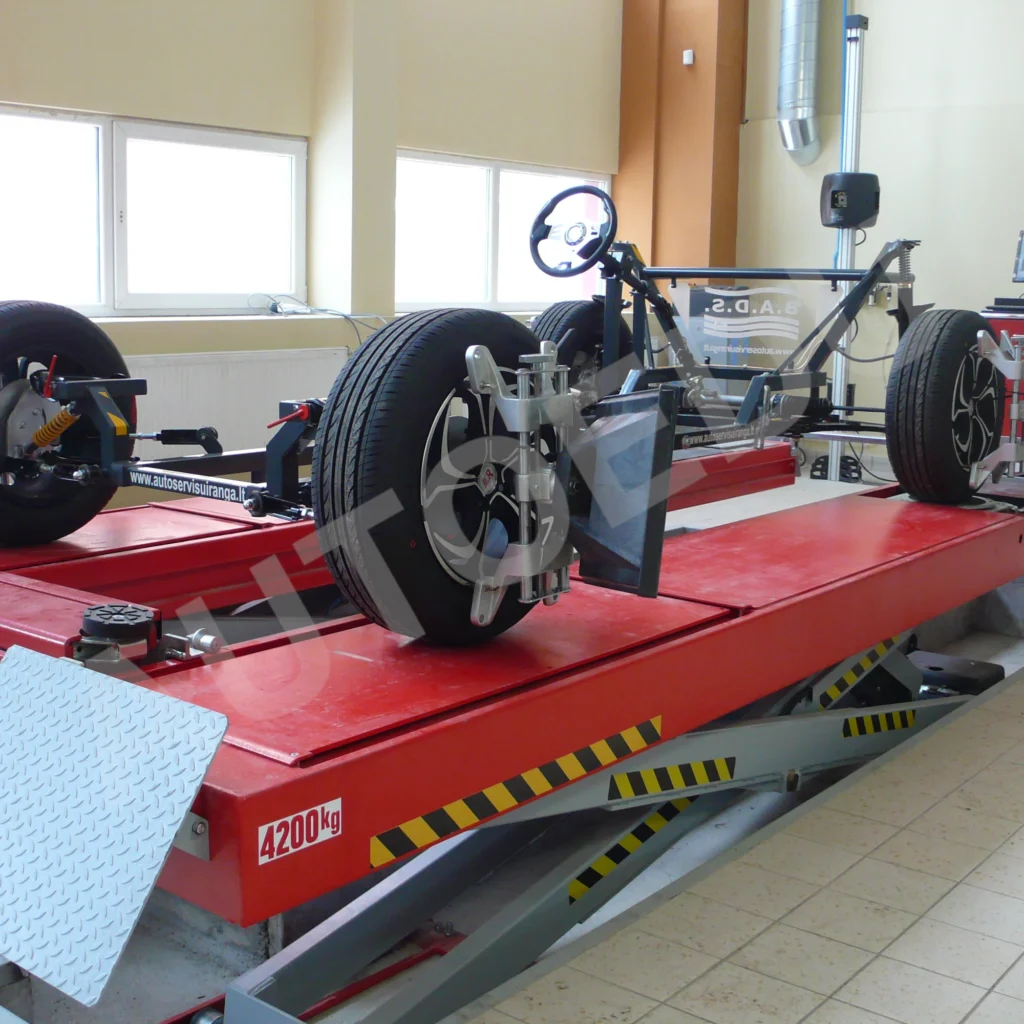

  • Compatible with 3D, CCD, and mechanical wheel aligners for comprehensive measurement and adjustment.
  • Allows for easy viewing and access for measurements and adjustments without the need for a car lift.
  • Easily foldable for compact storage and convenient transportation.

Value for Students

  • Adjust camber, caster, toe, and steering axis inclination (SAI) angles on both front and rear suspensions.

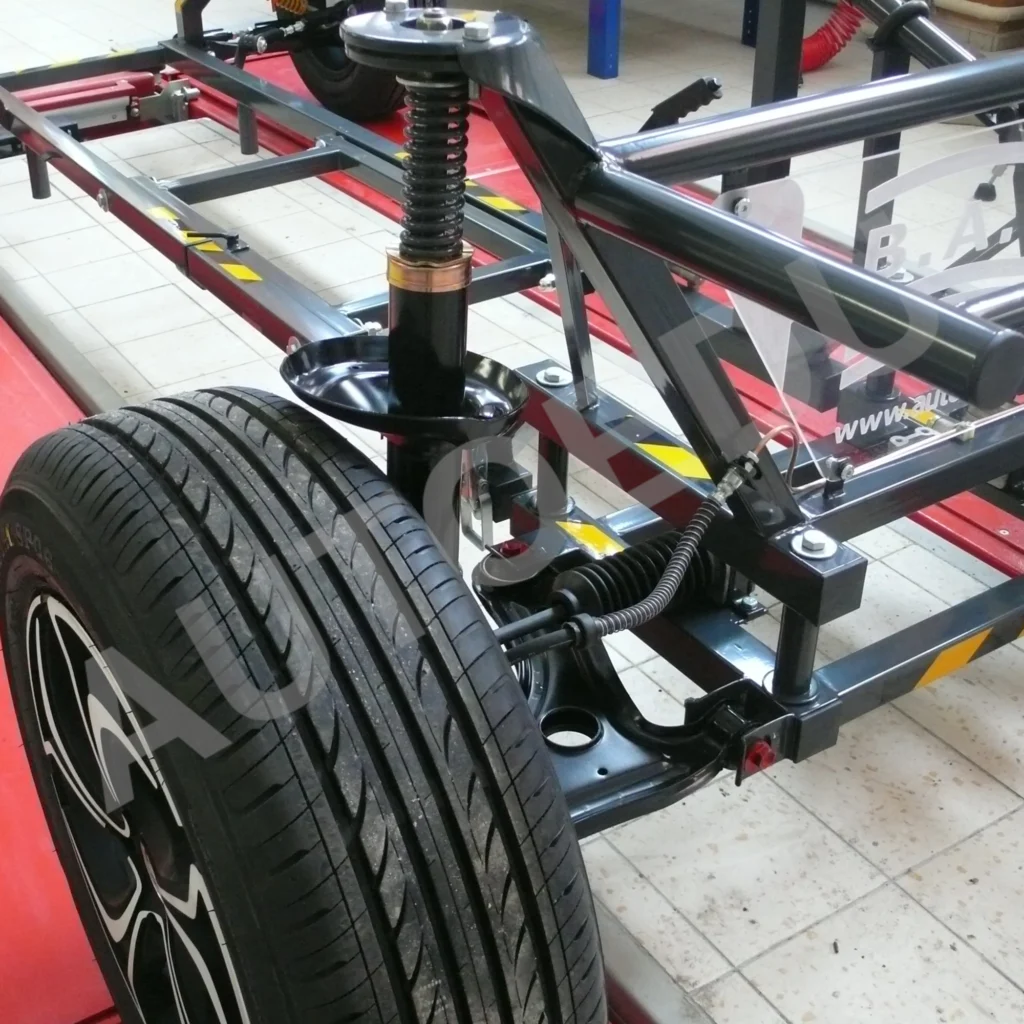

  • Understand the mechanics and functions of a McPherson-type front suspension and a multi-link rear suspension through direct interaction.

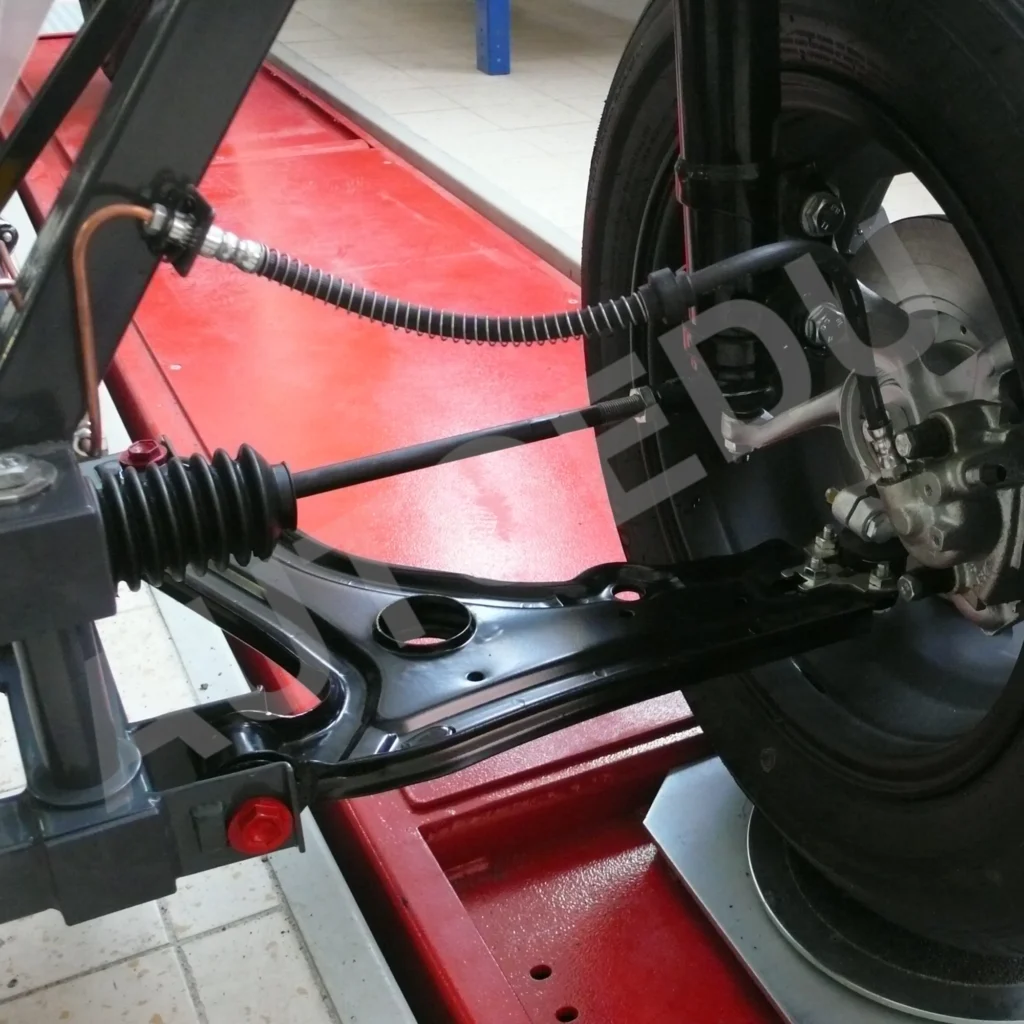

  • Front hydraulic brake for extended analysis brake interaction into suspension.

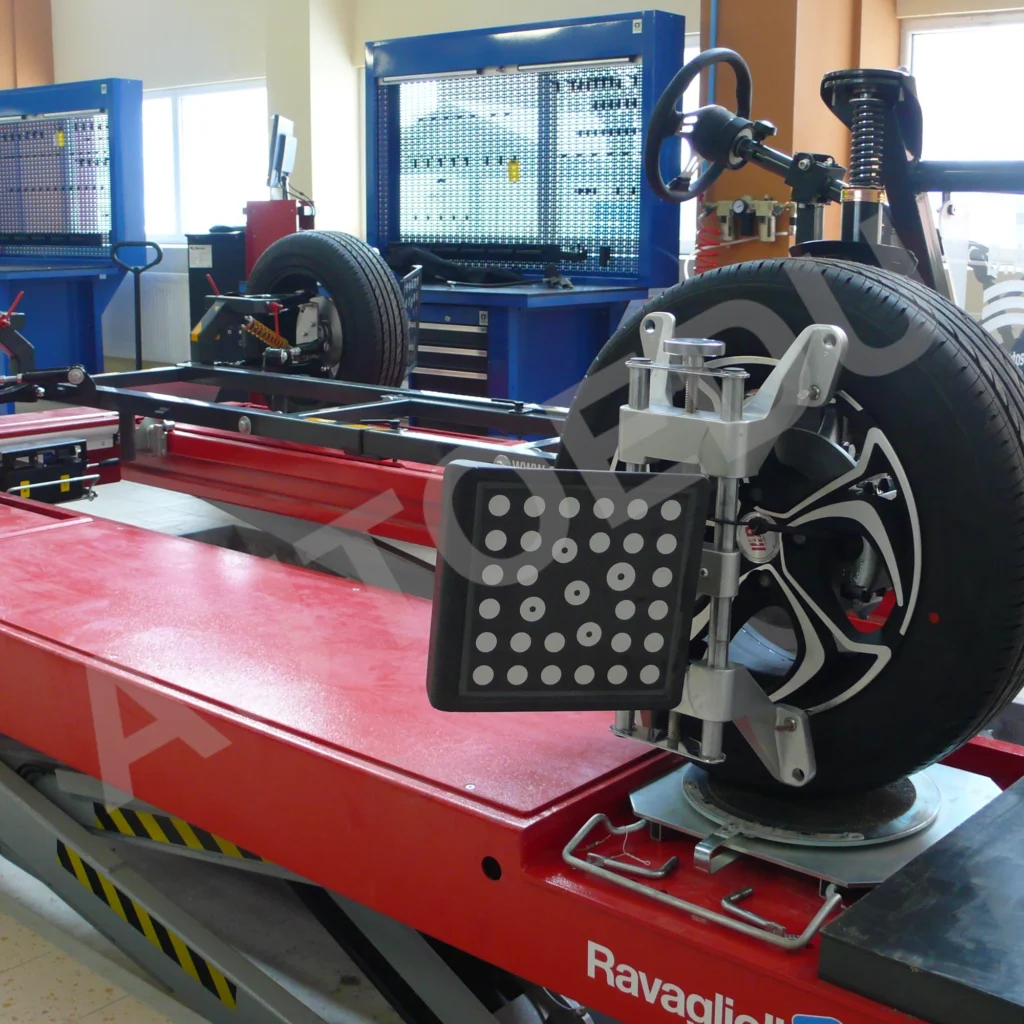

  • Utilize various wheel aligners, including 3D technology wheel aligners, CCD technology wheel aligners, and mechanical aligners (rulers, ropes, lasers), to measure and adjust suspension geometry.
  • Learn to measure and adjust wheelbase distances, axis shifts, scrub radius, caster trail, tread width, and other essential alignment parameters.
  • Develop proficiency in using diagnostic tools to monitor ride height, central line position, traction line operation, thrust angle, toe difference angle, and turning radius.

Value for Instructors

  • Provides easy, safe, and comfortable training that builds confidence, using OEM components to offer a realistic car repair experience.
  • Provide clear, hands-on demonstrations of suspension geometry adjustments using visible and adjustable suspension components.
  • Space-saving, foldable design that allows for easy storage and mobility within the classroom.
  • Uses OEM automotive parts for an authentic and practical learning experience. Students gets real experience with all parts and functions exact as in real cars.
  • Allows concurrent use by multiple students, promoting collaborative learning and practical training opportunities.
  • The training stand is designed for simplicity, requiring only small adjustments to reset to default parameters, making it easy to prepare and start each lesson quickly and efficiently.

Specifications

  • Dimensions:
  • fully spread base 1100 x 3100 x 1700 mm (43.31 in x 122.05 in x 66.93 in);

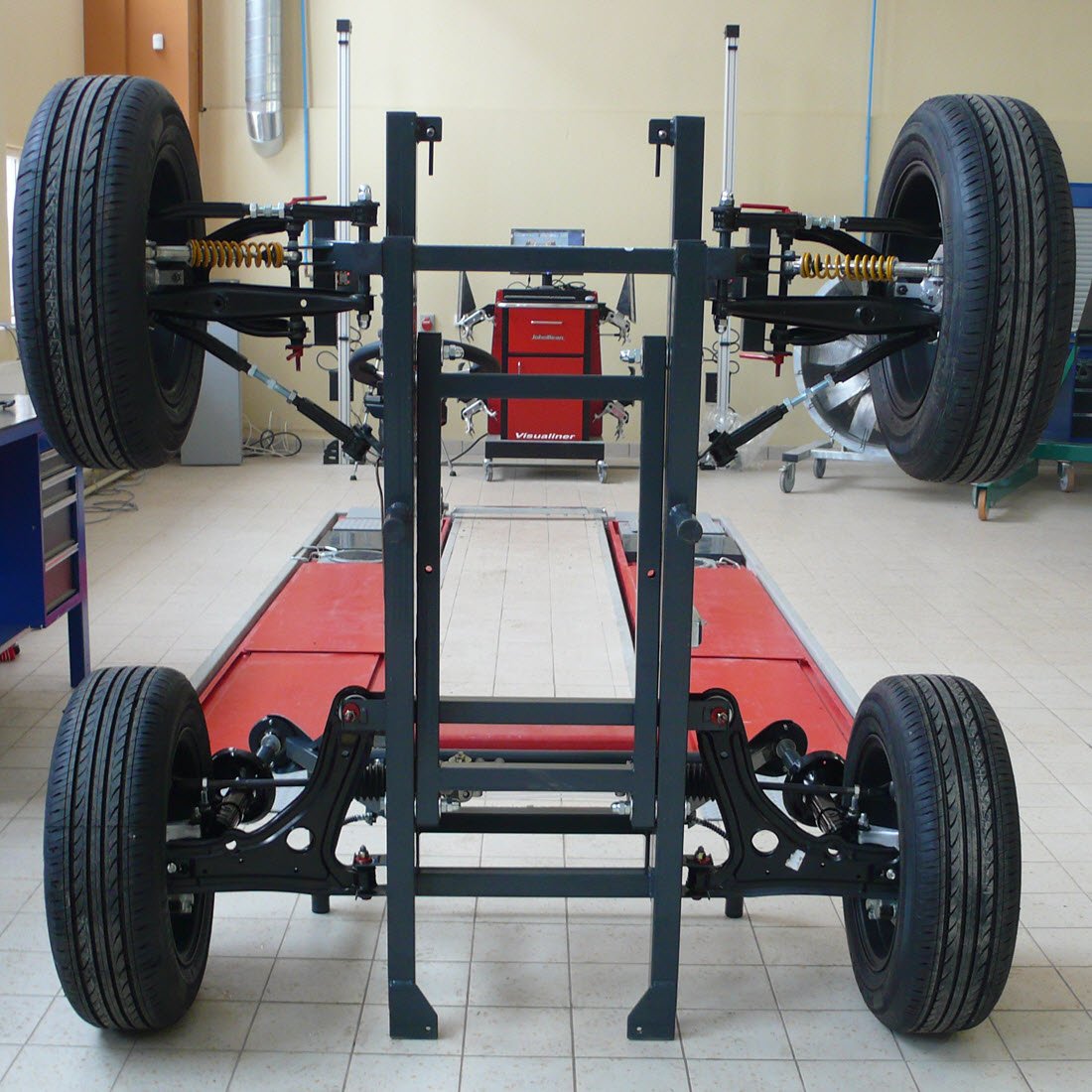

  • Folded for storage 1100 x 1650 x 1700 mm (43.31 in x 64.96 in x 66.93 in )(standing on wheels);

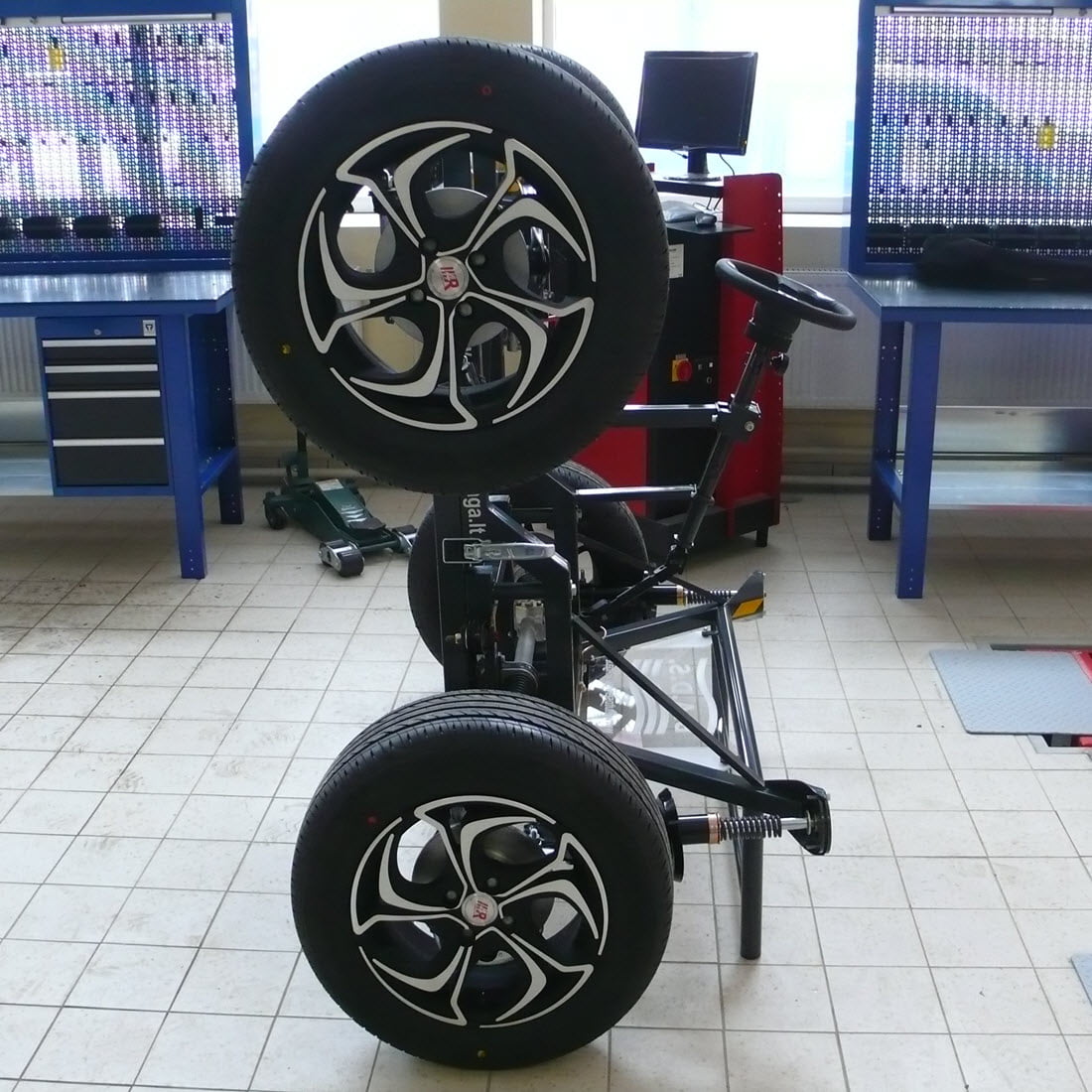

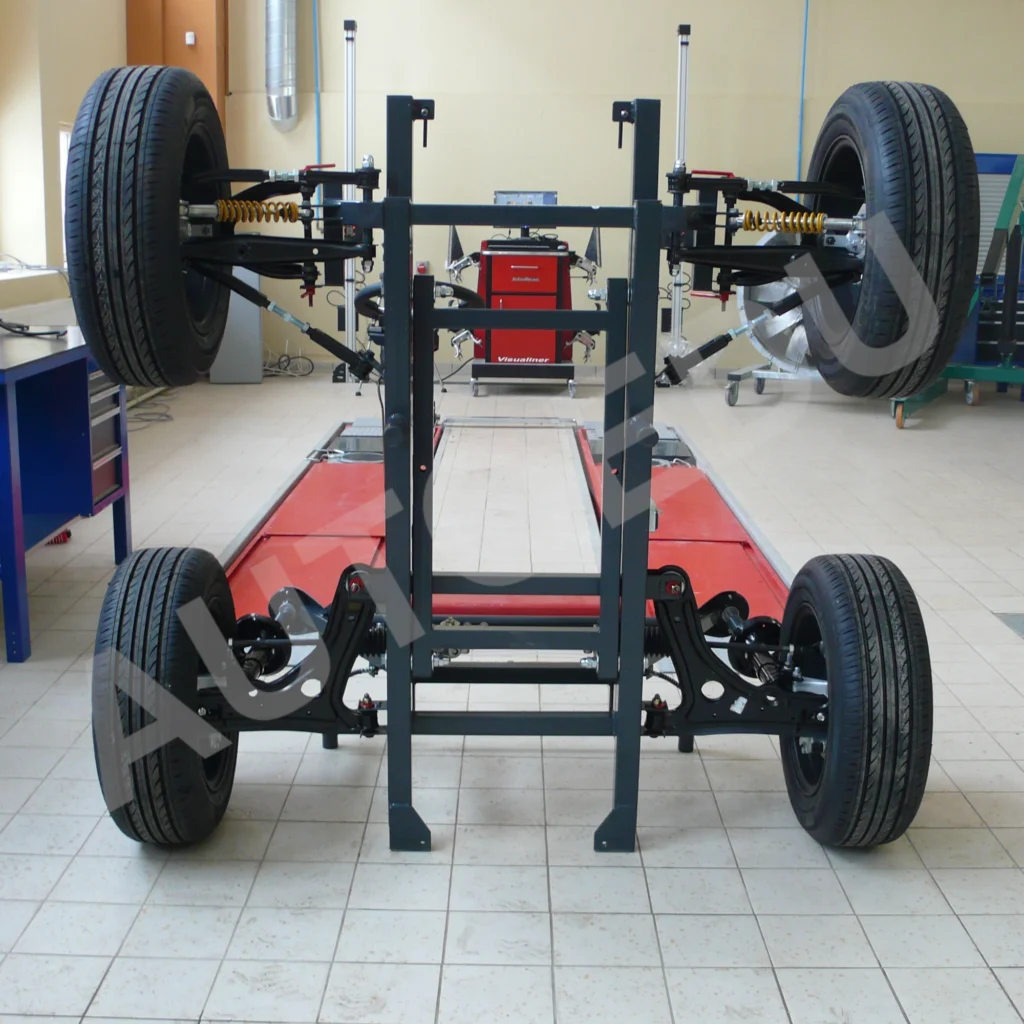

  •  Upright folded 1650 x 1100 x 1700 mm (64.96 in x 43.31 in x 66.93 in)
  • Weight: approx. 195 kg (~430 lb)
  • Product number: MSVAZ01
