GMTO/TiePie HS6 DIFF 4 Channel Oscilloscope Standard Kit

GMTO/TiePie HS6 DIFF 4 channel oscilloscope Standard Kit.

Now includes ATIS pro software with one years updates.

65.002,695.00 ex. VAT

2,695.00 ex. VAT

Available on back-order

2,395.00 ex. VAT

Available on back-order

2,095.00 ex. VAT

Available on back-order

1,950.00 ex. VAT

Available on back-order

1,795.00 ex. VAT

Available on back-order

65.00 ex. VAT

Free Delivery In Ireland

If you are a customer located in Ireland, spend €150 ex.VAT or more and get free delivery, or for orders under €150 ex.VAT delivery costs €8.10 ex.VAT Read Our Delivery Information

Product Description

GMTO/TiePie HS6 DIFF 4 channel oscilloscope Standard Kit (also know as ATS605004D)

Prices ranging from €1795 + vat to €2595 + vat depending on sample rate, contact us for more information

Now includes ATIS pro software with one years updates

Made in Holland:

The HS6 DIFF 4 channel oscilloscope, by far the most advanced scope on the market with user friendly set up.

When a scan tool has indicated an area of trouble or when the scan tool does not give you any answers a Scope needs to be used to measure the signals produced by the sensors/ actuators. and allows you to look into the system at a completely different level,

Electronic management systems in cars get more and more sophisticated. When these sophisticated systems malfunction, sophisticated measuring equipment is required to locate the cause of the problem.

This unit comes with Atis pro software, Which has a database with more than 260 automotive components with more than 900 diagnostic measurements, more generic guided tests and preset screens than any other scope on the market,

And also has detailed vehicle specific info, allowing you to search by specific vehicle giving you all of the below information on a huge range of vehicles for engine management systems and in some cases ABS and Air con

  • Wiring diagrams
  • Specific sensor and actuator tests
  • Procedures and sample wave forms
  • Live connection diagrams
  • Component location information with live pictures
  • Technical information about the specific item you are testing
  • This level of information on a scope has never been available before.

    Click here for more information on the Atis pro software

The Atis pro software included in this set also has updates for one year but does not shut down after the 1st year if you do not renew the subscription

Automotive oscilloscope

Heart of this Kit is the Automotive scope HS6 DIFF automotive oscilloscope. This PC oscilloscope turns your computer into a sophisticated automotive diagnostic system. Equipped with four differential inputs,  the Automotive scope HS6 DIFF guarantees measuring multiple signals without the risk of creating short circuits through the oscilloscope. The compact Automotive scope HS6 DIFF is USB powered, which makes it easy to connect it to a laptop computer and perform measurements while driving the vehicle. The large input range, the long memory buffers and high maximum sampling rate make it the possible to capture almost any automotive signal. The built in connection test feature on each channel informs whether the test points have electrical connection to test subject, leaving no doubt whether there is no connection or no signal.

Main features:

  • Up to 1 GS/s sampling speed
  • 250 MHz bandwidth
  • USB 3.0
  • Differential inputs
  • XM: With the extended memory option, up to 256 MSamples memory per channel is available.
  • S: The SureConnect , connection test and resistance measurement are available on all channels.
  • The Handyscope HS6 DIFF can be synchronized with other oscilloscopes using the CMI interface to form a multi channel combined instrument with synchronized time base. The CMI interface is available by default on the Handyscope HS6 DIFF. so with a second HS6 DIFF you can have a 8 channel combined scope
  • Spectrum analyser and serial/CAN bus pro-tocol analyser
  • 1 year warranty as standard on main scope unit and option to buy 5 year warranty for €65.00

The units we stock are the 1G/S and 500MS/S sample rate and come standard with SureConnect and Extended Memory as we believe when you are making a investment like this is better to go the extra cost and get the best spec

But we can supply these units with lower sampling speed starting from €1695 + vat

See pricing above based on sampling speed

What is sampling speed all about

The rate at which samples are taken by the oscilloscope is called the sample frequency, the number of samples per second. A higher sample frequency corresponds to a shorter interval between the samples. As is visible in the picture below, with a higher sample frequency, the original signal can be reconstructed much better from the measured samples

The sample frequency must be higher than 2 times the highest frequency in the input signal. This is called the Nyquist frequency. Theoretically it is possible to reconstruct the input signal with more than 2 samples per period. In practice, at least 10 to 20 samples per period are recommended to be able to examine the signal thoroughly in an oscilloscope. When the sample frequency is not high enough, aliasing will occur.

Automotive Test and Information System

The ATIS-Pro Automotive Test and Information System is a large knowledge base with information on a huge range of electrical and electronic components that are used in the motor management system and ABS system of a car. In an intuitive graphical environment background information on sensors and actuators can be found, as well as detailed schematics, diagnosis instructions, component locations with photographs of most available cars and example signals for proper functioning components. The unique point of ATIS is the direct coupling between the diagnosis instructions with the example signals to the measuring instrument. One click of the mouse in ATIS will launch the automotive measurement software and load the specific settings to measure on the particular component. The mechanic can focus on finding the problem, he does not need to find out how to setup the instrument.

The Automotive Diagnostics Kit is delivered with ATIS-Lite. As an extension to ATIS-Lite, ATIS-Pro can be ordered. ATIS-Pro contains an extensive database with more schematics, connection diagrams and oscilloscope settings with reference signals.

Measuring leads

To connect the Automotive scope HS6 DIFF to the automotive circuits, the this Kit contains a set of four special measuring leads. The Measuring Leads are 2 meter long low noise BNC to 4 mm banana measuring leads, specifically designed to be used on differential oscilloscope inputs. The two ends of the Measuring leads with the banana jacks can be placed 1.2 meters apart, without picking up external disturbances. The length of 2 meter allows to connect the instrument to components under the hood while the instrument is located on the passenger seat, making it possible to perform measurement while driving. The measuring lead is made of silicone, making it heat resistant and oil resistant, perfectly suitable for automotive applications. The 4 mm banana jacks make it possible to connect a variety of test points or clamps.

Back probes

This Kit contains a set of back probes. These thin and flexible measuring probes fit on any test lead with 4 mm banana jacks and make it possible to connect to hard to reach places. They allow to back probe wires in connectors, without breaking the circuit, without the need of break out boxes and without damaging the wire isolation. The set contains 8 probes, four black ones, a red, a yellow, a green and a blue one, matching the input channel colour coding of the Automotive scope.

Ignition pickups (Not included in this set but can be added at any time)

To measure secondary ignition signals, the Ignition Pickup Set is added to the Kit. Simply clamp the Ignition Pickup Set around a spark plug cable and measure the secondary ignition signals, both from normal ignition systems and DIS ignition systems. The Automotive Diagnostics Kit contains two pickups. (see optional COP testing adaptor)

Current clamps

To measure large currents, like e.g. starting currents, a current clamp CC-600 is included in this Kit. The Current clamp CC-600 makes it possible to measure current with your automotive oscilloscope, without the need of breaking the circuit. Simply clamp the Current clamp CC-600 around the wire and measure the current, up to 600 A. Current measurements can reveal problems that with a voltage pattern remain hidden, like e.g. compression problems that are visible in the starting current.

Many components draw far less than 600 A, making the 80 A current clamp CC-80 a more suitable current clamp which is included in this kit. It will measure up to 80 A, giving a much higher accuracy at low currents than the Current clamp CC-600. Use it to reveal problems in driving injectors, measuring leakage currents etc.

Accelerometer and manual trigger button (Not included in this set but can be added at any time)

The dual accelerometer measures accelerations up to 2 g in two planes. It can be used to measure vibrations in mechanical systems, but is can also be used to determine the maximum power of an engine, without the need of expensive equipment. Attach the acceleration sensor to the floor of the car and accelerate at full power. Using the weight of the car and the measured signal, the power can then be calculated by the software.

The manual trigger button can be used to trigger the automotive oscilloscope when the input signals are unknown. Connect the automotive oscilloscope to the sensors you want to check and start driving the car. As soon as the problem occurs, e.g. the engine holding back, press the manual trigger button. The automotive oscilloscope will now measure the signals and store them. Since the oscilloscope can store the signals before pressing the trigger button, later examination of the signals will show how the problem developed.

The manual trigger button can be used independently from the accelerometer.

Differential attenuators

The 80 Volt full scale input range of the Automotive scope HS6 DIFF makes it possible to measure almost any automotive signal. In case the voltage exceeds 80 Volt, the Differential attenuator can be used. This special differential attenuator attenuates the input signal by a factor 10 and allows inputs up to 300 volts, It can be used when measuring e.g. primary ignition signals or fuel injector signals. This Kit contains a Differential attenuator for each channel.

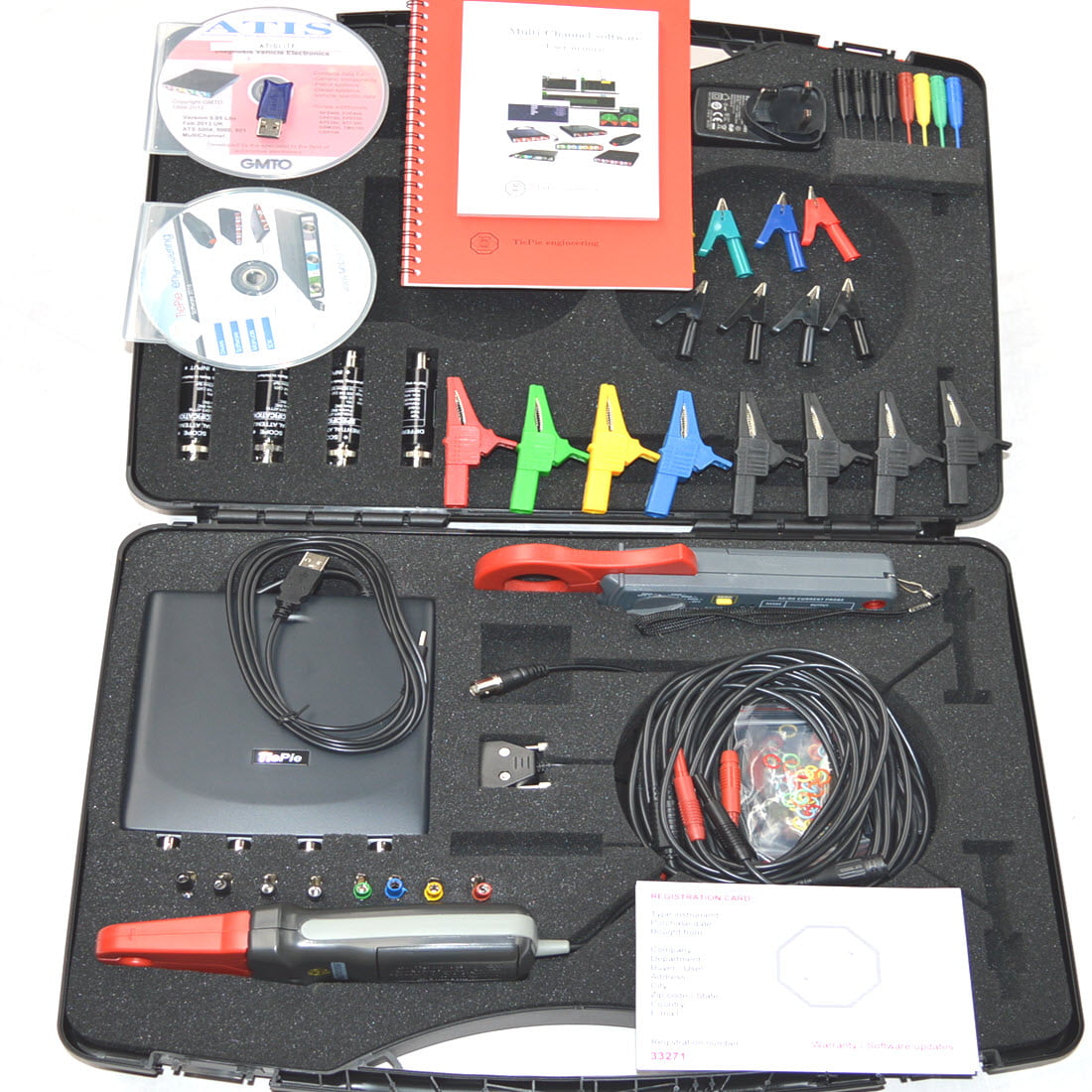

Standard Kit Includes:

  • ATIS pro software software on CD with security dongle
  • Scope software and drivers on CD
  • 4 Channel Scope unit
  • 4 x measuring leads 2 meters long
  • 8 x colour coded back probes
  • Alligator Clip TP-AC80I – Set (8 clips: 4 black, 1 green, 1 blue, 1 yellow, 1 red)
  • Alligator Clip TP-AC10I – Set (8 clips: 4 black, 1 green, 1 blue, 1 yellow, 1 red)
  • Alligator Clip TP-AC5 – Set (8 clips: 4 black, 1 green, 1 blue, 1 yellow, 1 red)
  • 4 x differential attenuators
  • 1 x current clamp 600 amp
  • 1 x current clamp 80 amp
  • Carry Case
  • Power supply
  • External power USB cable
  • Software manual
  • Instrument manual
  • 3 hours set up and training (optional 1 or 2 day courses)
  • Access to our customer support portal which has general scope help, some know good sample wave forms that we have collected and training videos

And these other items can be added at any time:

  • 2 x secondary ignition pick ups
  • Coil on plug probe
  • Accelerometer
  • Manual trigger button
  • Rubber protector for scope
  • Custom carry case
  • Common rail return flow tester
  • Bosch piezo connections for return flow tester
  • APS260 pressure measurement system for intake and exhaust system, 0 to 2.6 bar
  • TMS150 Module allows temperature diagnosis of Air Conditioning Systems
  • In cylinder pressure transducer and connection adaptors for Petrol and diesel

Click here to see optional extras

Other options available on special order

  • Fuel pressure testing system
  • Common rail HP testing system

Check out the videos and documents for more information


There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

    If you want to book a demo for this product, either in our garage or at a venue convenient to you, please complete the following form.

    Your Name (required)

    Your Email (required)

    Company/Business Name

    Your Phone (required)

    Additional Message

      If you want to ask a pre-sale question about this product, please feel free to use the form below.

      Your First Name (required)

      Your Phone (required)

      Your Last Name (required)

      Your Email (required)

      Your Question

      Magazine Article 1

      Magazine Article 2

      Magazine Article 3

      Choosing an Oscilloscope

      Scope Resolution

      This Scope in the below videos is the ATS5004D (the HS6 DIFF/ATS605004D is the new model of the 5004D with improved hardware and higher sample rates) with all accessories and the product above is the HS6 DIFF with out the following items

      2 x secondary ignition pick ups
      1 x Accelerometer
      1 x Manual trigger button
      1 x Ground tree

      But the above items can be added at any time

      This Scope in the below videos is the ATS5004D (the HS6 DIFF/ATS605004D is the new model of the 5004D with improved hardware and higher sample rates) with all accessories and the product above is the HS6 DIFF with out the following items

      2 x secondary ignition pick ups
      1 x Accelerometer
      1 x Manual trigger button
      1 x ground tree

      We at Ryan’s automotive pride ourselves on the support we give with the products we sell,
      As we believe that selling the product to the customer is only the 1st step and that ongoing support is very important so the customer can get good value from his equipment,
      We are also in a great position to support these products as we use them every day in our own workshop,
      Support and after sales service can sometimes be a very loosely used terms and it is not always clear what the supplier is committing to, this is why we want to explain as clearly as possible what both parties are committing to.
      All of the below is based on units sold in Ireland (32 counties) and for outside Ireland it is not possible to provide all of the below support and after sales in the same forms, for example loaner units calling on site etc, so please enquire for more information if you are based outside of Ireland.

      All GMTO/TiePie scopes tools come with 1 year warranty as standard (or 5 year warranty as a optional extra for €65 only on the main scope unit)
      And all warranty repairs if required will be either carried out on site or the unit picked up and taken back to Ryan’s Automotive for repairs and a loaner unit will be left with the user until the unit is delivered back. In the cases where we would get a courier to pick up the unit we would ask the workshop to pack up the unit carefully to avoid damage in transport,
      We aim to keep the customer up and running and will either have the issue fixed or a loaner unit delivered to the customer within 48 hours (Monday to Friday).

      Items excluded from the 1 year warranty are
      Scope leads,
      Back probes, Alligator clips etc,
      Differential attenuators,
      Problems caused by the users own laptop/PC
      Damage to the scope caused by incorrect power supply, Excessive dampness, or any other damage caused by fluid ingress, accidental damages, incorrect use damages or unauthorised modifications.

      Delivery and Training
      Ryan’s Automotive or a courier will deliver the unit to your workshop and we will install and set up the software on your laptop/PC in person or via Team viewer and test it on a vehicle and ensure it is ready to work, (the laptop or PC the customer wants to use must have the required specs and space and be in good working order)
      And spend 3 hours onsite (or if not possible to call onsite can provide training over team viewer, WhatsApp and phone) providing training on use of the scope.
      We also can provide extra chargeable training if required.
      We also provide a chargeable 2 day oscilloscope training courses and there is also some videos and information on our customer support portal showing how to use the scope,

      Ryan’s Automotive can provide scope and software technical support by phone, WhatsApp, our customer support portal, email or by logging into your unit via team viewer when needed (subject to fair use ).
      We also have a support section on our website which has videos and information on how to use and update the unit and also has some know good, know bad wave forms and information on how to perform some scope tests, users can also send us tickets via this support area.
      Additional support packages are required for vehicle technical support.

      Not included in the support
      Technical information that is found on systems like Tecnomotor TIS web, Autodata, Alldata etc,
      The above support does not include vehicle technical support but we are always willing to help customers were we can.
      Problems with the users own lap top or PC which affects how the scope software works
      examples virus, lap top gone very slow or crashing etc, lap top software issues,

      Repairs not covered by the warranty and after the warranty period
      For repairs not covered by warranty or after the warranty we can assist in few different ways all at very reasonable rates,
      1 Log into the unit via team viewer
      2 Call on site and perform the necessary work and if needed take the unit back to Ryan’s Automotive for completion
      3 Owner can deliverer the machine to Ryan’s Automotive to be repaired (this will save on call out or transportation fees)
      4 Arrange to get the unit picked up and taken back to Ryan’s Automotive
      5 Send out the necessary parts to the owner and advise over the phone how to perform the necessary operation
      6 Provide a hire unit for the period that the unit is out of action (note this is chargeable for non warranty repairs and subject to availability)

      Spare parts and optional connectors
      We keep a stock of the following parts if required
      Scope leads
      Back probes
      And many other oscilloscope test leads and scope accessories
