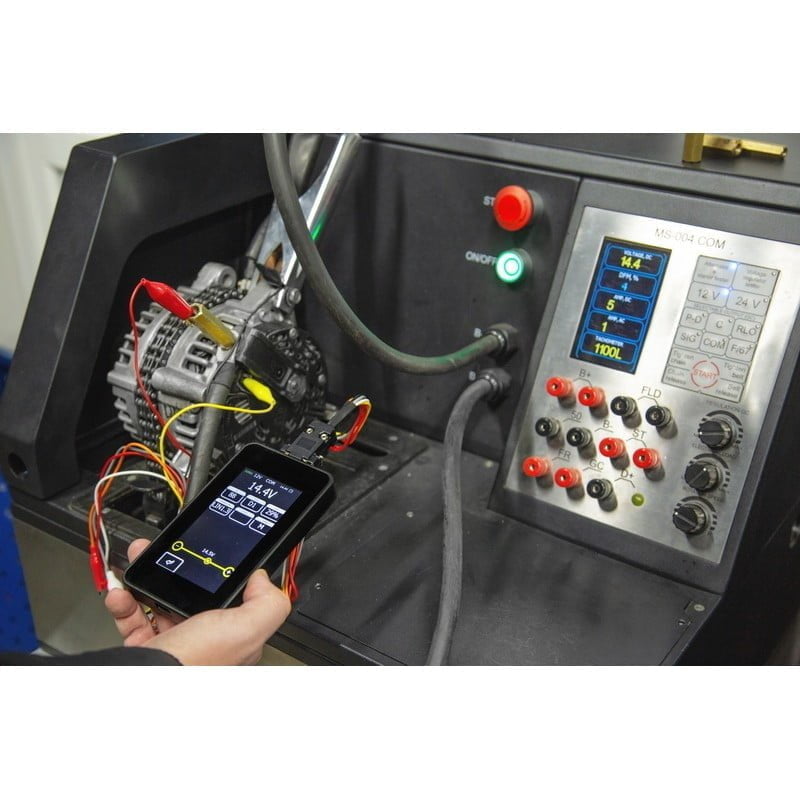

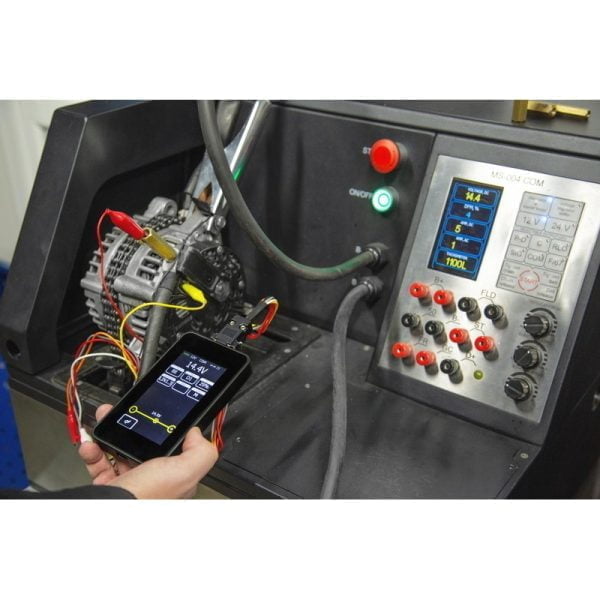

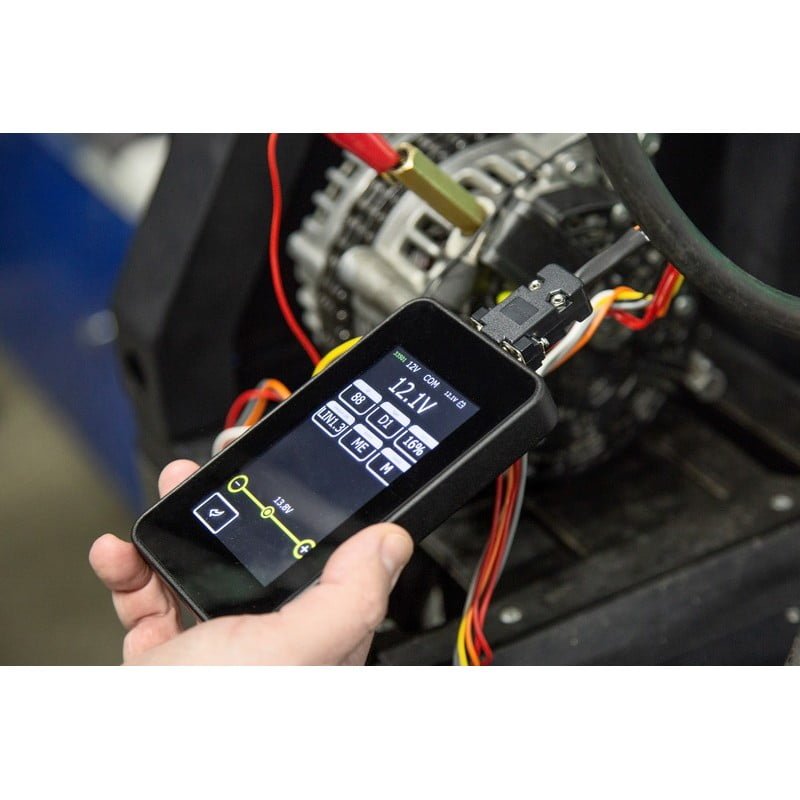

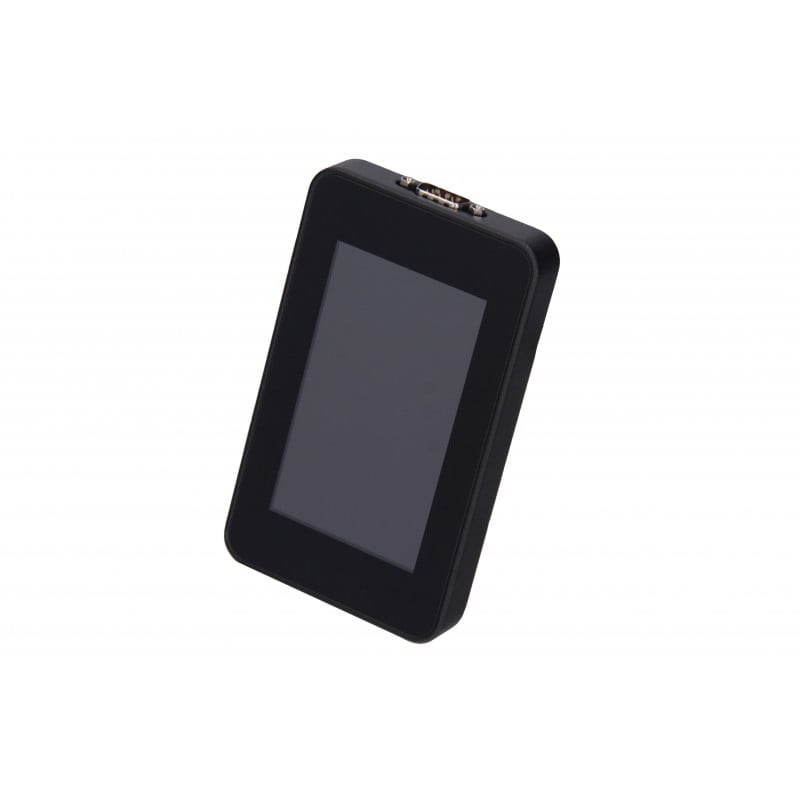

MS016 is a compact multifunctional device for express diagnostics of automotive 12/24V alternators, reversible 12V alternators of Stop-Start system, starters without removing them from a car, and voltage regulators separately from alternators. The device reads and saves the data transmitted via the LIN bus of a vehicle.
If you are a customer located in Ireland, spend €150 ex.VAT or more and get free delivery, or for orders under €150 ex.VAT delivery costs €12.50 ex.VAT
Read Our Delivery Information
Tester MS016 is a compact multifunctional device for express diagnostics of automotive 12/24V alternators, reversible 12V alternators of Stop-Start system, starters without removing them from a car, and voltage regulators separately from alternators. The device reads and saves the data transmitted via the LIN bus of a vehicle.
Advantages:
diagnostics of alternators with a nominal voltage of 12/24V
diagnostics of Stop-start alternators with a nominal voltage of 12V

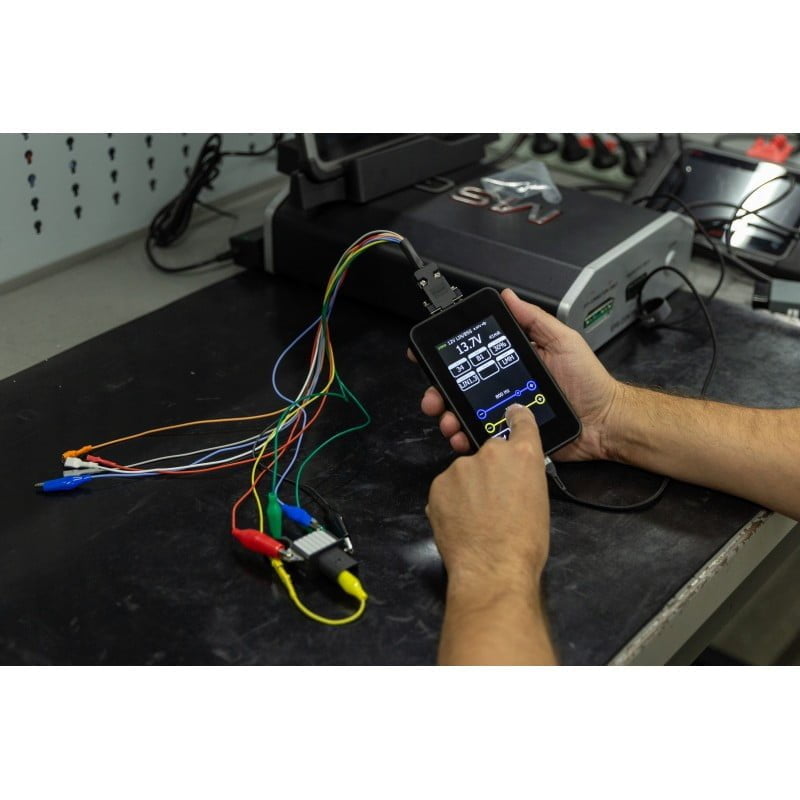

diagnostics of voltage regulators with a nominal voltage of 12/24V separately from alternators
database of voltage regulators
reading and saving the data transmitted via the LIN-bus
diagnostics of automotive starters using cable MS-33503
compact size
convenience and ease-of-use
free software update.
Technical Info:
Dimensions: (L×W×H), mm: 157×85×18
Weight, kg: 0,3
Supply voltage during alternator testing: 12-48V – either battery or test bench supply
Supply voltage during voltage regulator testing: power unit with «Quick Charge 2.0» (Output 9V-2A) function
Touch screen: IPS 4.3″ Capacitive touch
Ingress protection code: IP20
Nominal voltage of tested alternators, V: 12, 24

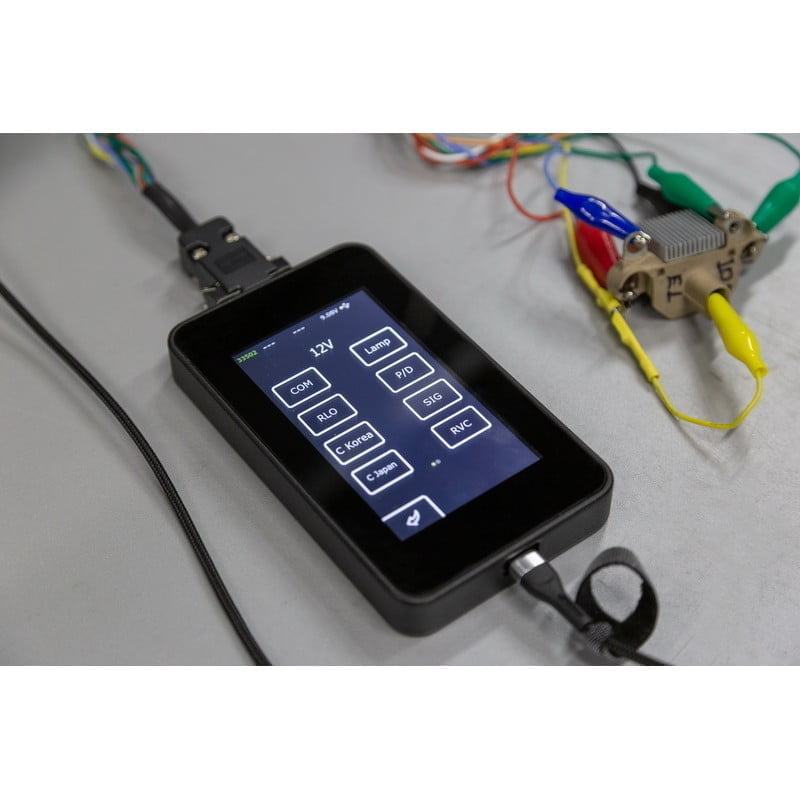

Types of tested alternators, 12V: Lam, SIG, RLO, RVC, C KOREA, P/D, COM, LIN, BSS, C JAPAN, VALEO I-StARS,
Types of tested alternators, 24V: Lamp, COM, LIN, PWM (SCANIA)

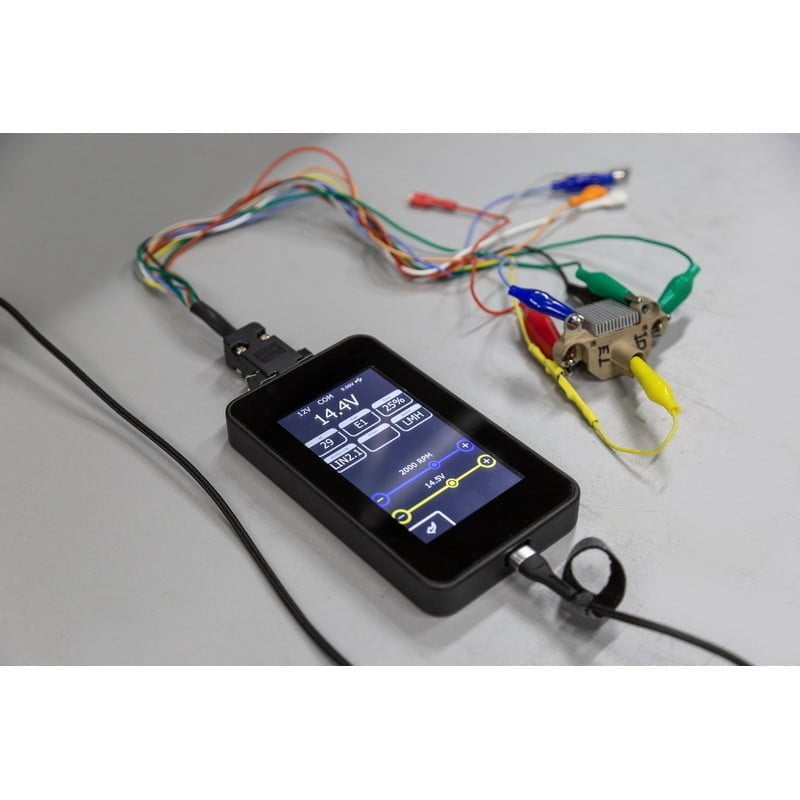

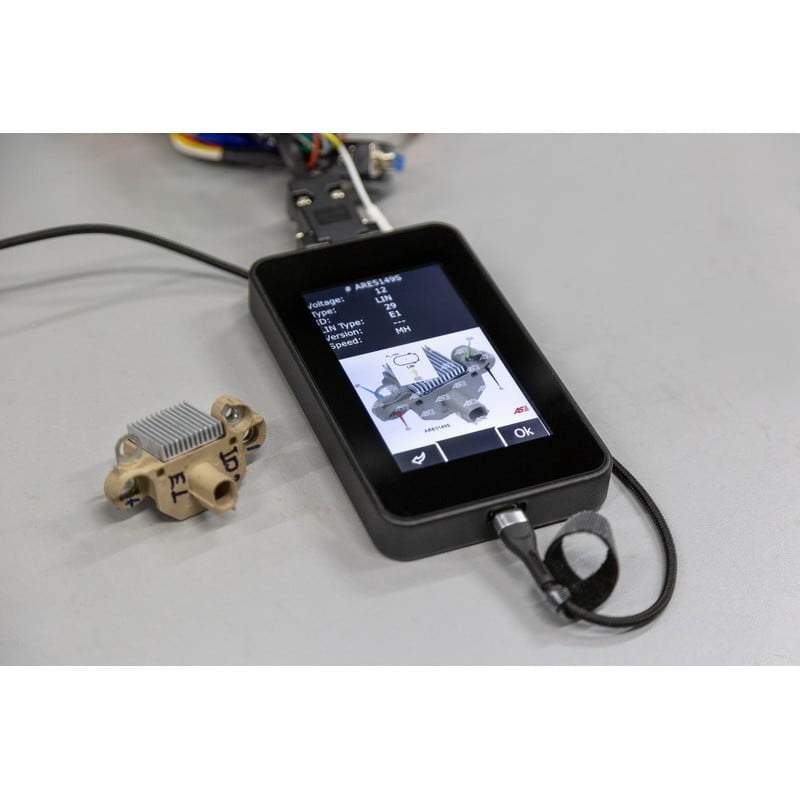

Tested parameters: Stabilizing voltage, Control lamp, FR (voltage regulator response to the load on alternator). For COM voltage regulators: ID, protocol type, data exchange rate, voltage regulator type, type of LIN protocol, voltage regulator self-diagnosis faults.
Voltage measurement accuracy, V: ±0,1
Software update: Yes
Voltage regulator database: Yes
Options:
MS-33503 optional cable for testing the starter and wiring.
Product Specifications
Weight
1 kg
Dimensions
27 × 22 × 10 cm
The below function diagnostics of starters is only available with the MS016 if you have the optional cable MS-33503
