Power Probe DM300AUTO Automotive Digital Multimeter

Product Description

Power Probe DM300AUTO Automotive Digital Multimeter

The DM300AUTO is much more than just a complete True-RMS Digital Multimeter. It also includes some other functionalities of great utility for professionals dedicated to the automotive sector, such as the ability to measure current across fuses without removal, battery & alternator tests by checking the correct charging process of the alternator or measuring cranking voltages in the supply circuit. The TFT color display and the user-friendly menu make this instrument an indispensable tool for AUTO professionals.

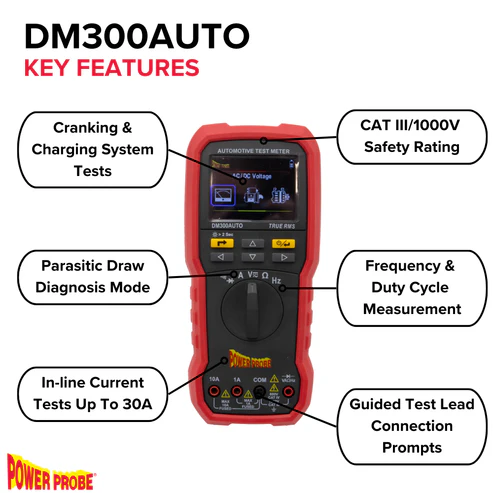

Features:

• Measures current Flowing through fuses without removing the fuse (up to 80A)
• Fuse voltage drop testing
• Guided automotive test such as: Cracking Voltage test, Alternator Charging test
• AC/DC Voltage measurements up to 1000V
• Current measurements up to 30A
• Measures resistance, continuity and diode testing
• Frequency and duty cycle for PWM signals
• CAT III 3 multimeter safe for use up to 1000 volts suitable for working on hybrid and EV vehicles

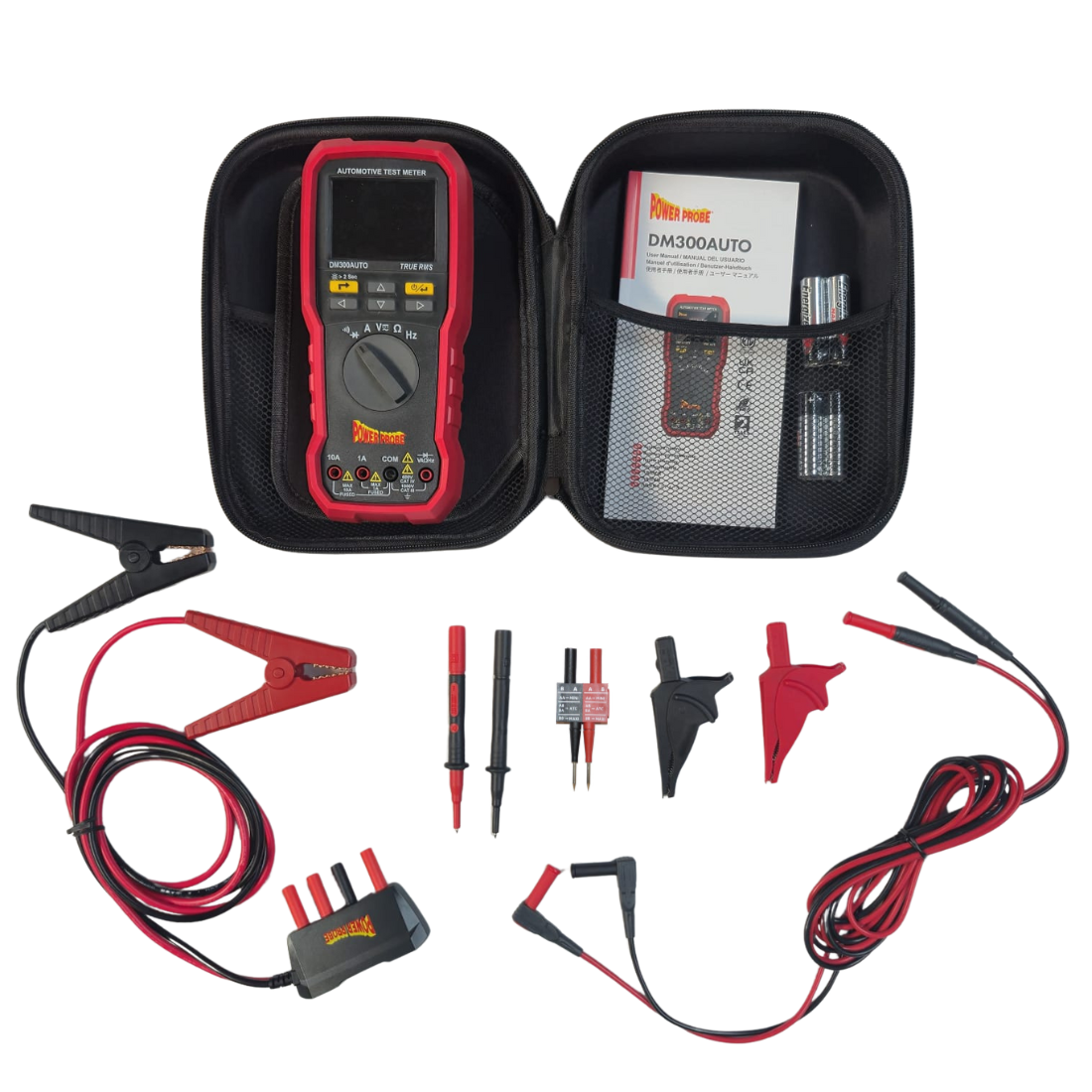

What’s in the box?

• 2 x 1.5m (5ft) Test Leads
• 2 x alligator clips
• 30A test probe
• 1 x fuse current probe set
• 3 x AAA Batteries
• User manual
• Carry bag

General Info:

• Display: 2.8” TFT LCD
• Counts: 6000
• Auto power off: Yes
• Backlight: Yes
• Dimensions: 92.6x205x57.5mm
• Weight: 588g
• Power Supply: ALKALINE Battey
• Drop Protection: 4 feet drop per EN 61010-1
• Safety category: CAT IV 600V, CAT III 1000V

Specs:

• True-RMS: Yes
• Continuity & Diode Test: Yes
• DC Voltage: 1000V
• AC Voltage: 1000V
• CAT 3: 1000V
• Cranking Voltage Test: 12V / 24V Starter
• Alternator Cranking Test: 12V Normal / Smart Alternator, 24V Normal / Smart Alternator
• In line DC Current: 10.00A
• In line DC Current with 30A Probe: 30.00A
• Fuse DC Current measurement: 2A to 80A (MINI / ATC / MAXI fuse)
• Resistance: 40.00MΩ
• Frequency: 20.00kHz
• Duty Cycle: 1-99%
