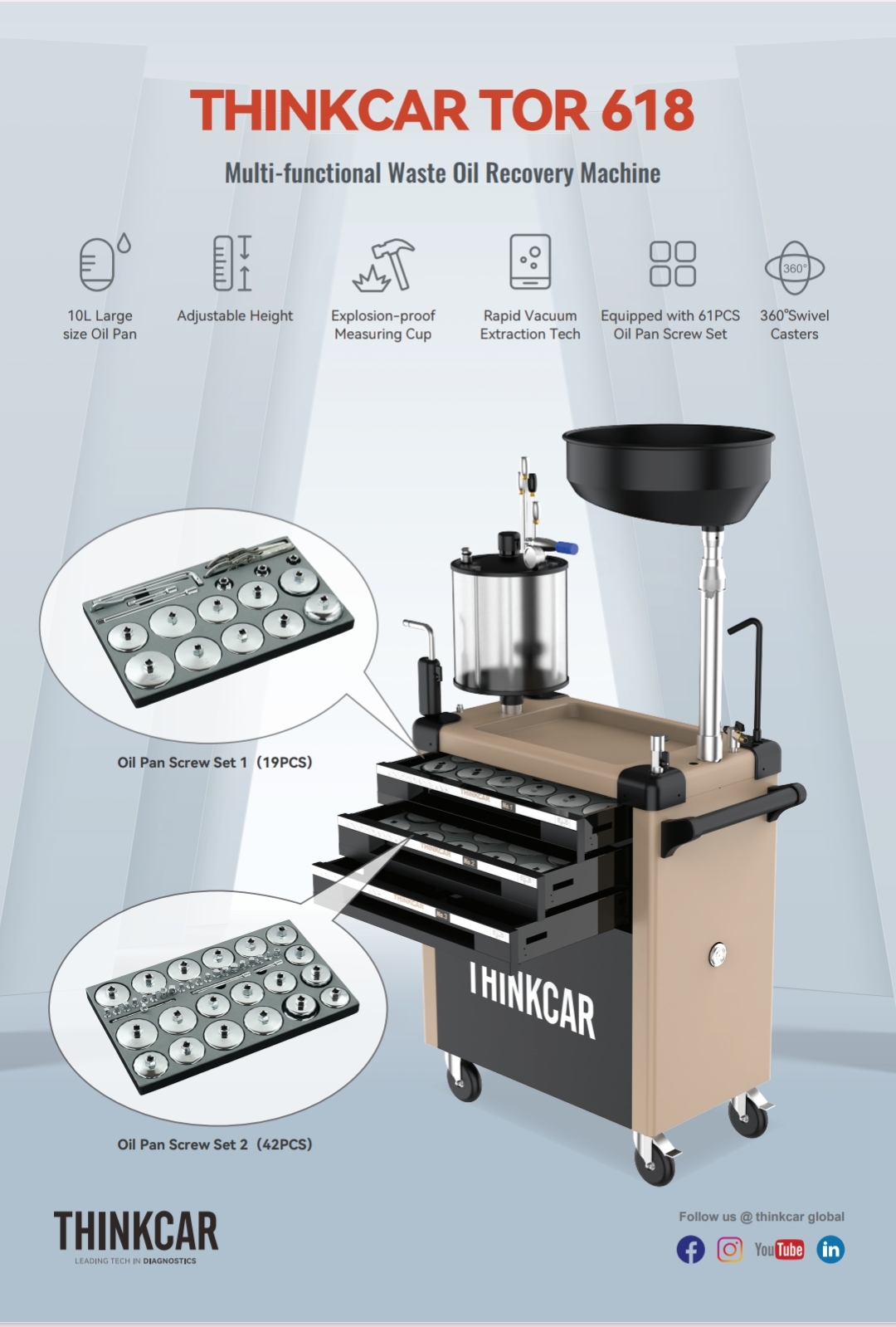

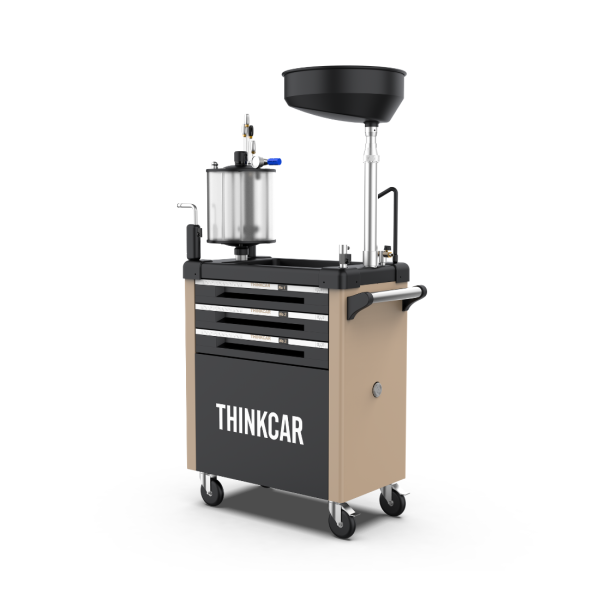

ThinkCar TOR618 Multi Functional Waste Oil Recovery Trolley

Product Description

ThinkCar TOR618 Multi Functional Waste Oil Recovery Trolley

THINKCAR TOR 618 is a professional waste oil recovery machine. It generates negative pressure through a pneumatic pump to draw waste oil into the system, then utilizes pneumatic power to push the waste oil into the storage tank.
The TOR 618 is easy to operate with powerful suction and rapid oil transfer capabilities, equipped with a 61 pieces tool set for filters and drain plugs which covers nearly all vehicle models available on the market. This TOR 618 machine is widely used in automotive repair shops, lubricant stores, and other similar settings.

Features:

• Large-Size Oil Catch Pan: A large-size 10L oil catch pan with leak-proof design and oil filter to prevent impurities from entering the oil drum.
• Height Adjusted: Features a height adjusted lifting rod to meet with different scenarios.
• 360°Swivel Casters: Equipped with 360°Anti-wear silent casters with built-in brake for easy and safe mobility.
• Equipped with 5 pcs oil pipe: Equipped with 5 pcs different diameter corrosion-resistant oil pipe,Φ5-1Pcs,Φ6-2Pcs,Φ8-2Pcs various vehicle oil inlets.
• Explosion-proof tempered glass measuring cup: The cup is made of explosion-proof tempered glass with high strength, resistance to high temperature, up to 120℃.
• Equipped with 61 pieces oil filler wrench: The screw set covers nearly all vehicle models on the market, with the precision  chrome-plated surface, non-slip design, which is wear-resistant and durable, strong locking force.

Specifications

• Model: TOR 618
• Air Supply Pressure: 6~8bar
• Oil discharge Pressure: 0.6~0.8bar
• Air consumption: 150L /Min
• Vacuum level: 0~65cmHg
• Tank capacity: 70L
• Cup capacity: 10L
• Oil receiving pan: 10L
• Oil temperature: 40°C~80°C
• Packing Size: 810*500*90mm,480*430*480mm
• Oil pipe: 5pcs
• Φ5×L700mm(Pvc , 1Pcs): rate of pumping:1.9 L/Min.
• Φ6×L700mm(Pvc, 2Pcs): rate of pumping:3.7 L/Min.
• Φ8×L700mm(Pvc, 2Pcs): rate of pumping:6.5 L/Min.
