ThinkCar TVL515 EV Battery Lift

Product Description

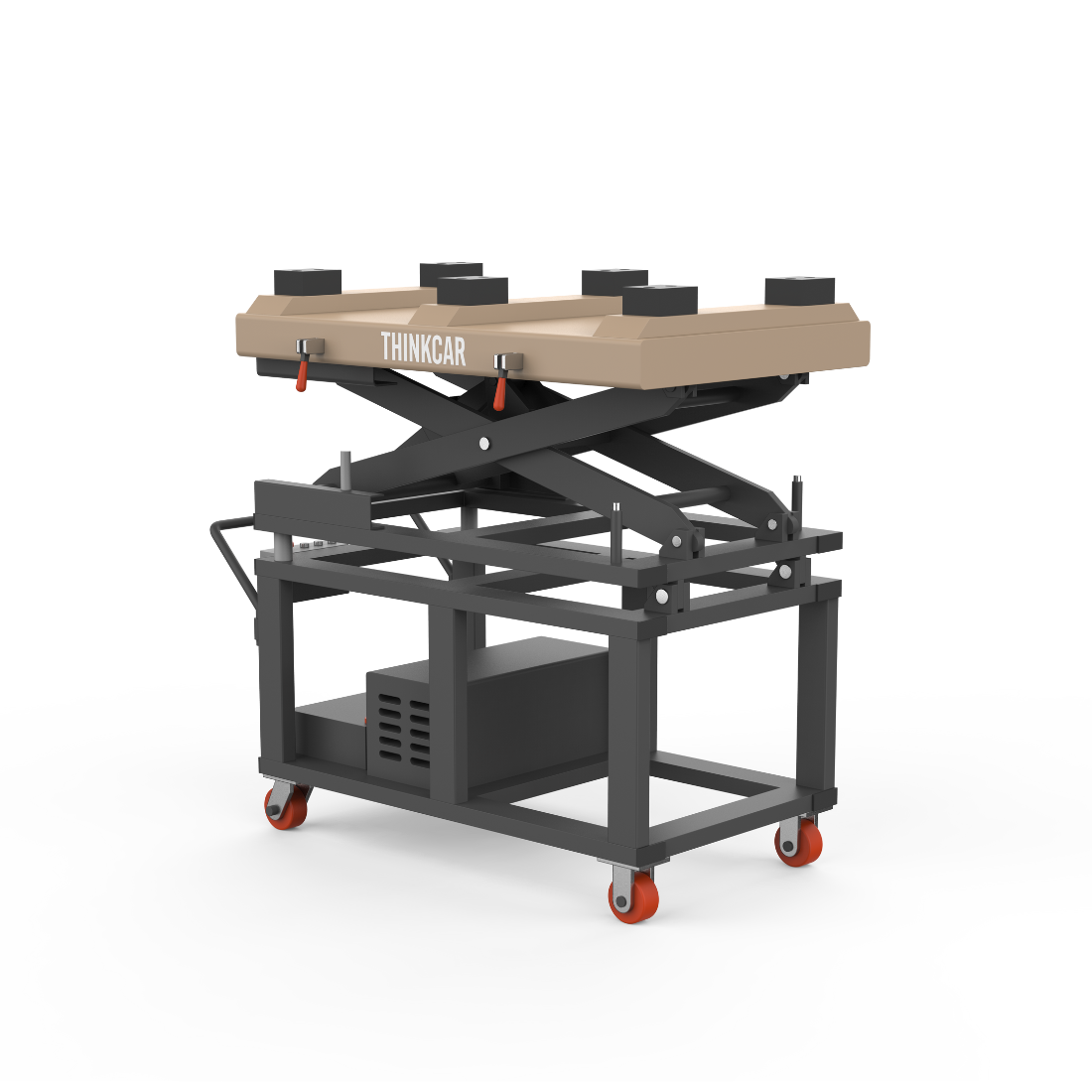

ThinkCar TVL515 EV Battery Lift

A professional electric vehicle battery pack disassembly and assembly machine designed to quickly and safely remove and install battery packs from the underside of the vehicle. It allows for easy repositioning during movement and maintenance.

Features

• Free installation, maintenance-free, easy to operate.
• Equipped with 2 swivel casters for easy movement.
• Electro-hydraulic, can rise quickly and slowly, fall at a uniform speed, safe and stable.
• 7° tilt design, suitable for disassembly and installation of battery packs in non-horizontal positions.
• Can slide from side to side to allow aligment of bolt holes
• Maximum loading capacity up to 1.5 tons, maximum lifting height 1.75m.

Specifications

• Rated load 1500kg
• Lifting height 1750mm
• Initial height 1130mm
• Lifting time ≤40s
• Lowering time ≥40s
• Platform length 1250mm
• Platform width 795mm
• Motor power 2.2kw
• Voltage 220V
• Hydraulic Oil 7L(Winter: N32# Summer: N46#)
• Net weight 300kg
• Drive mode electro-hydraulic
• Working Temperature -5-40°C
