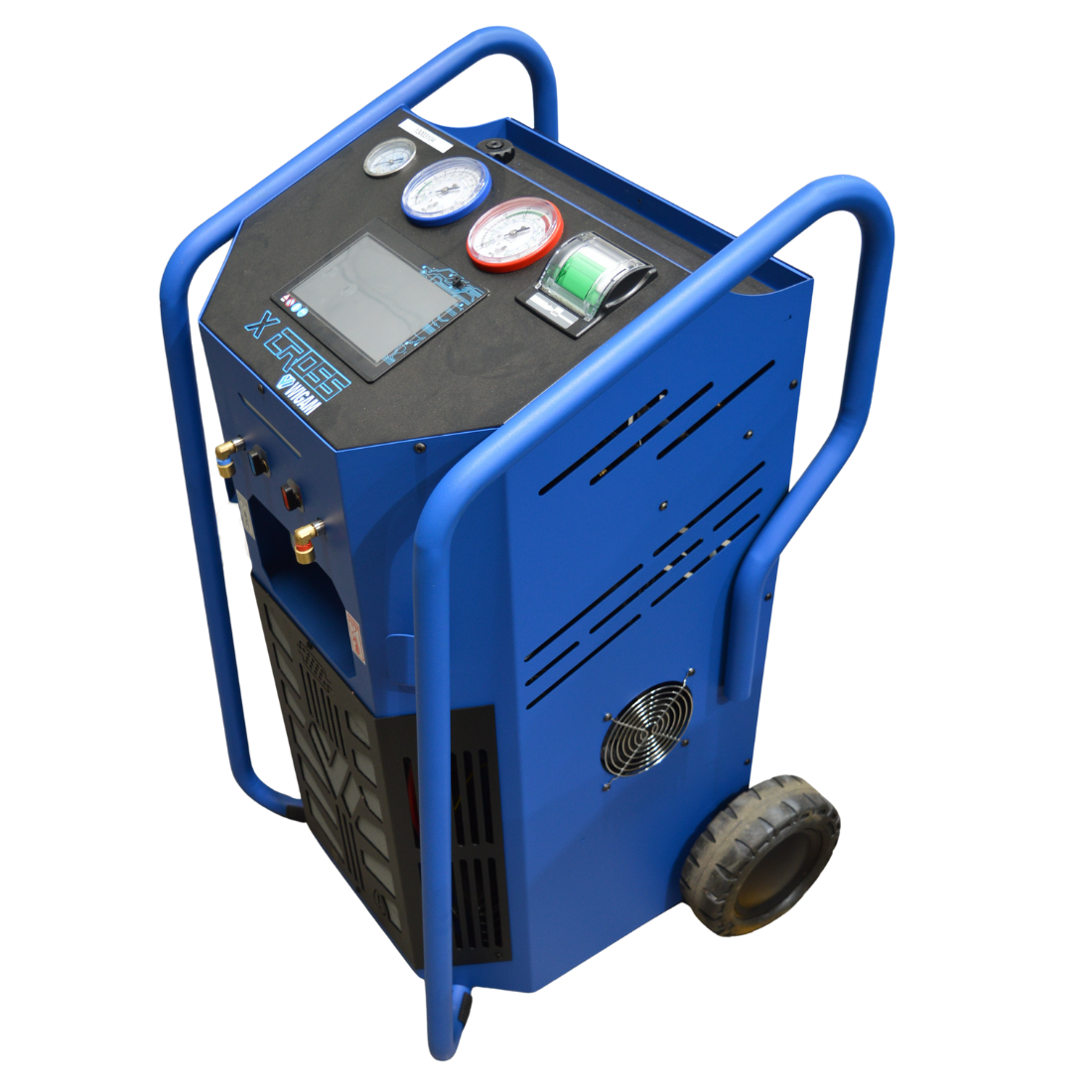

Wigam X-CROSS Air Conditioning Machine For R134A Or R1234YF

Product Description

Wigam X-CROSS Air Conditioning Machine For R134A Or R1234YF

(Must decide at date of purchase which gas you wish to use it for)

Compact automatic unit for recovery, recycling, vacuum and charge for agricultural and heavy duty vehicles

The Ideal machine for mobile service
The X-CROSS unit is dedicated to sectors where service is performed outside the workshop, such as agricultural and earthmoving equipment. Compact, handy and equipped with several handles, it is particularly suitable to be transported directly to the intervention site in complete safety. The special locking system of the bottle on the scale enables a safe handling even on uneven grounds.

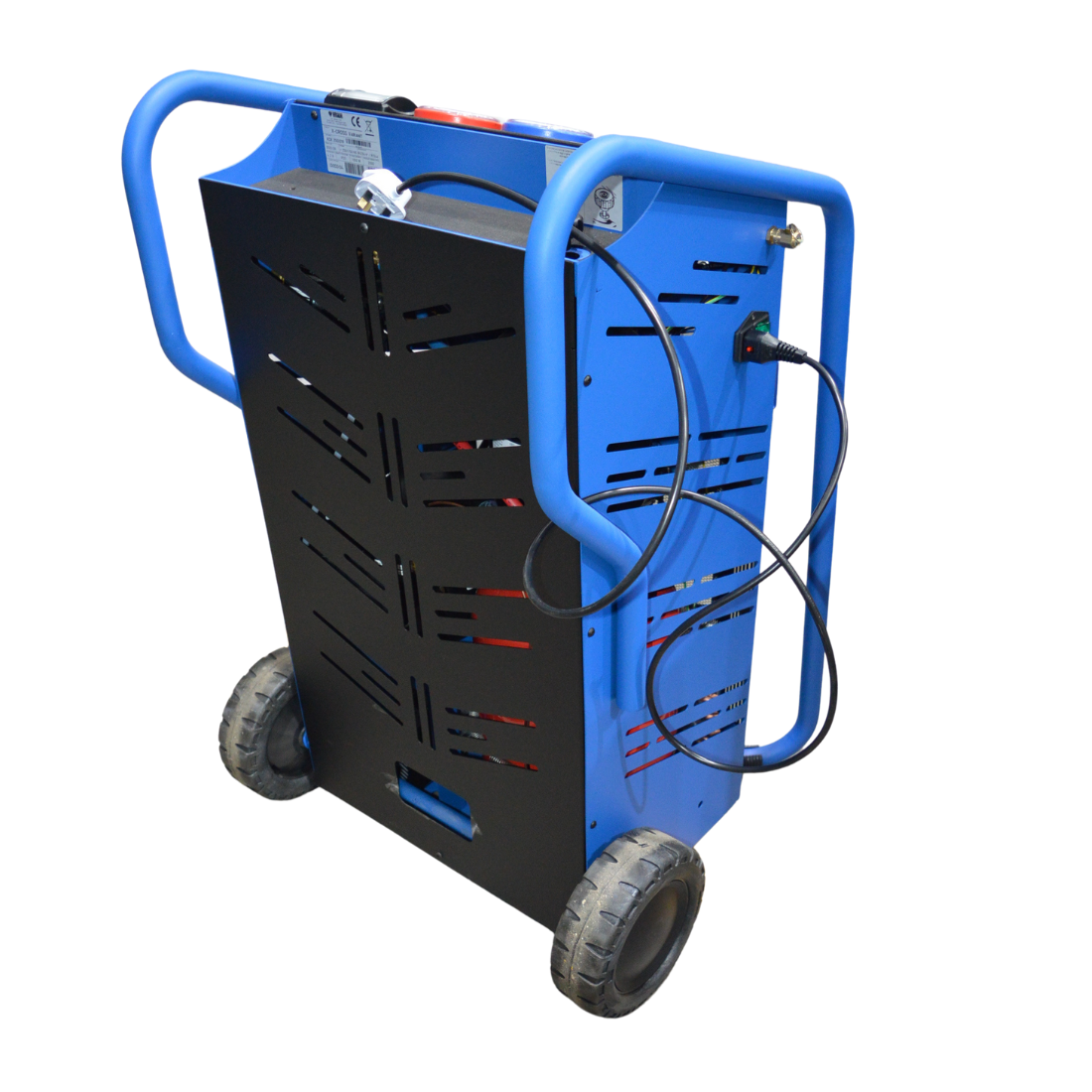

The heavy-duty metal frame with two rear wheels ensures an optimal stability even during transport in a van. All the functions and accesses, designed to be available from the front, make X-CROSS unit also ideal in case of fixed positioning inside a vehicle.
By purchasing the appropriate completion kit, the unit will be selected for the required refrigerant, during the start-up.

Main Functions:

• Ideal for agricultural and plant equipment
• Locking of the bottle scales for a safe handling.
• Additional analogue pressure gauges (LOW, HIGH and bottle pressure).
• Sturdy and stable compact frame.
• Recommended for working in unfavourable environmental conditions (high temperature).
• Ideal for placement in a van thanks to the front connections and access for maintenance.
• HYBRID-READY: AUTO-CLEAN function for hybrid and electric vehicles.

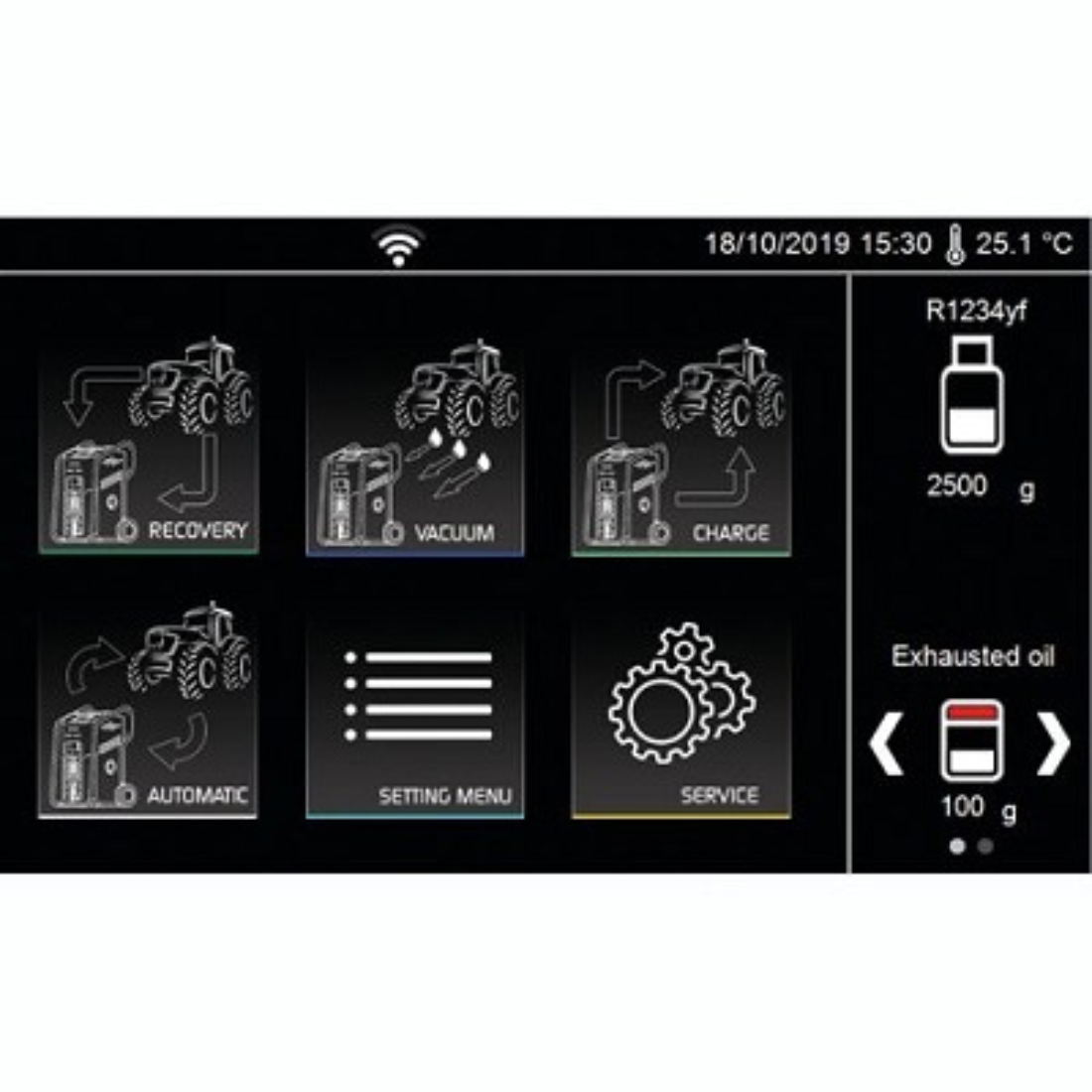

• 7” touchscreen display. suitable for use with gloves
• Equipment operation light indicator.
• Automatic unit:
  – Automatic Recovery/Recycling.
  – Automatic Vacuum/Vacuum test.
  – Automatic oil discharge (with scale).
  – Automatic PAG and POE oil/UV charge (with scale).
  – Automatic refrigerant charge.
  – Automatic personalized cycle (Recovery-vacuum-charge).
• Distillation system with automatic control.
• Database that can be updated via USB memory.
• Standard thermal printer.
• 2 independent scales for oils and additives.
• Automatic alarm for maintenance: the unit warns when it is necessary to change the filter and the oil in the vacuum pump (I.A.S.).
• Service connection on low pressure hose (I.C.S.).
• Periodic auto-test: the unit checks the internal circuit tightness every 20 days.
• Integrated room temperature probe.
• Set up for interconnection through Wi-Fi kit (optional).
• Wigam Service Portal, accessible via PC and smartphone, for handling and exchange of information and report (Wi-Fi kit necessary).
• Upgradeable for use with the main replacement gases as R456A, R513A and R444A (contact Wigam for specific compatibility).

Technical features:

• Refrigerants R134a – R1234yf
• Recovery rate 300 g/min
• Recovery accuracy +/-15g
• Recovery efficiency >95%
• Pump swept volume 100 l/min
• Bottle capacity 10 kg
• Refrigerant scale resolution 5 g
• Oil/UV scale resolution 1 g
• Dimensions (without packaging) 62 x 55
• Weight (without packaging) 66kg
