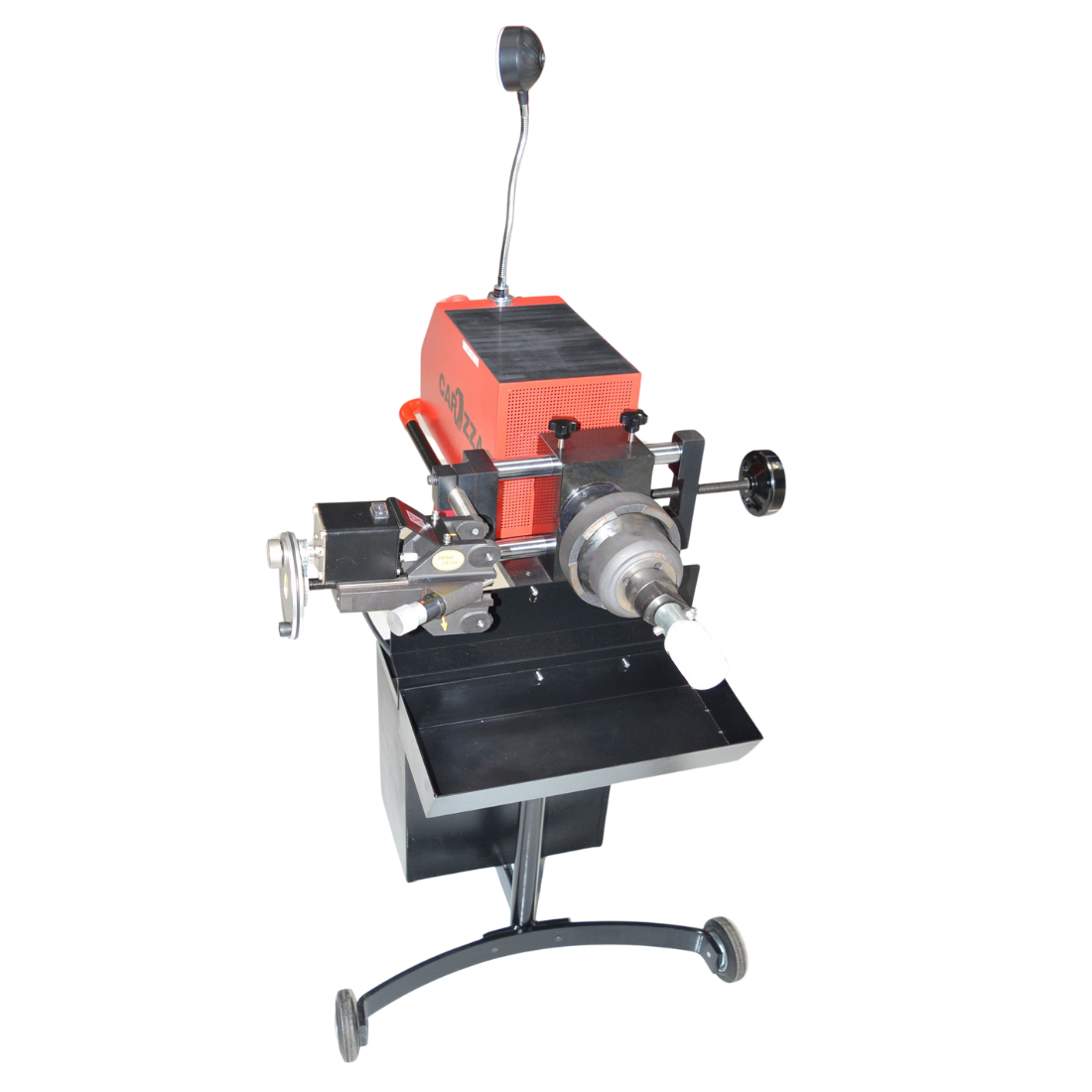

Carozza Brake Lathe BDL-500

Product Description

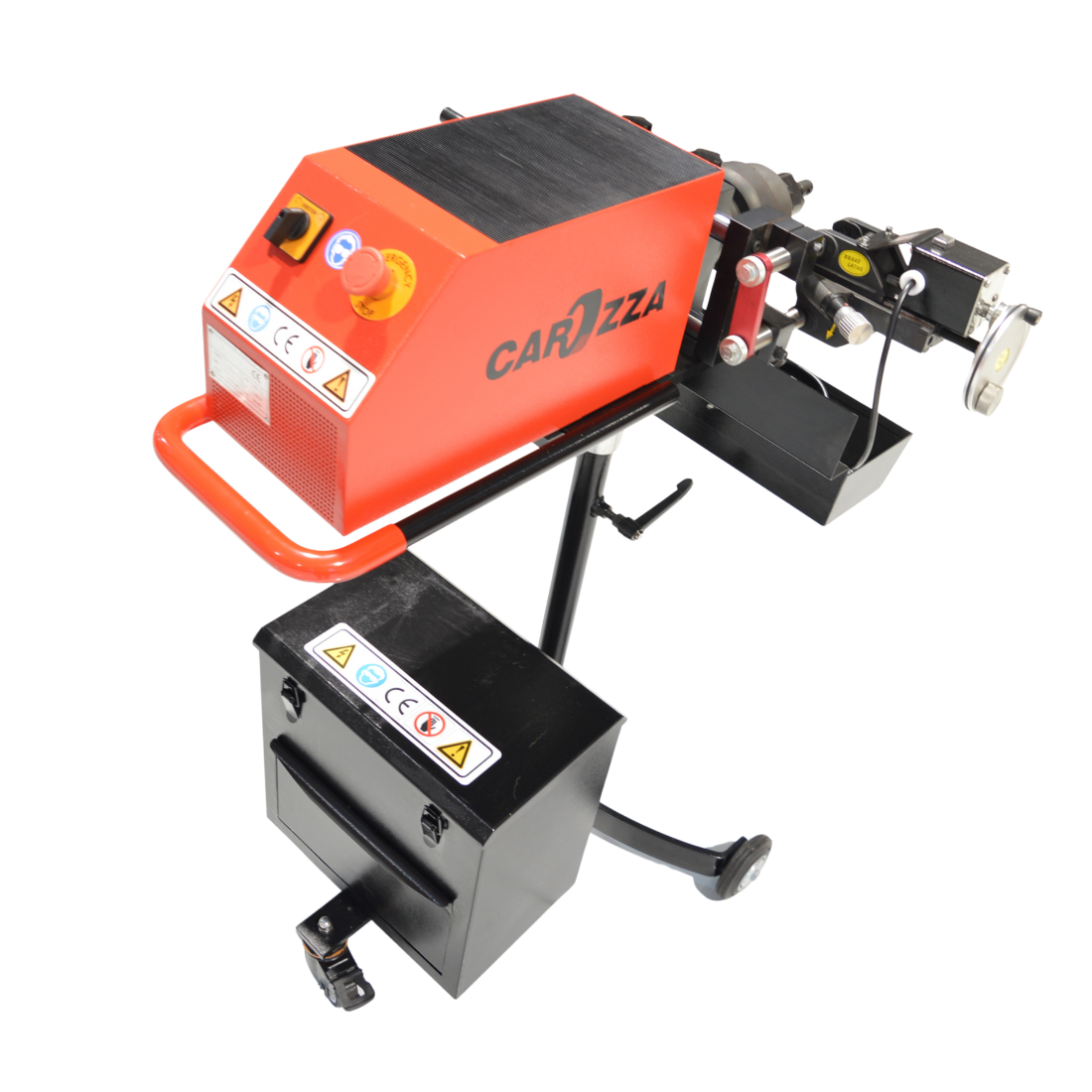

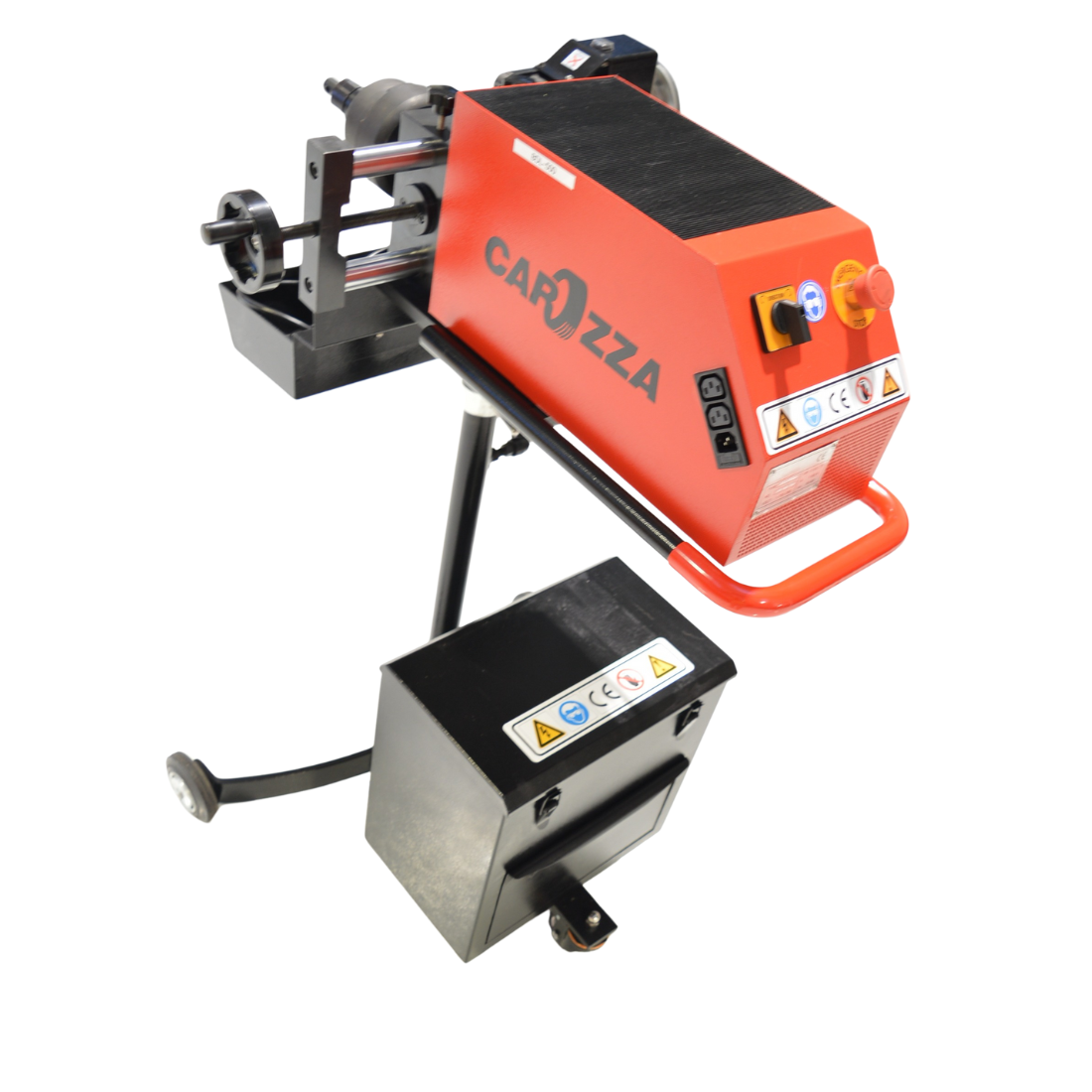

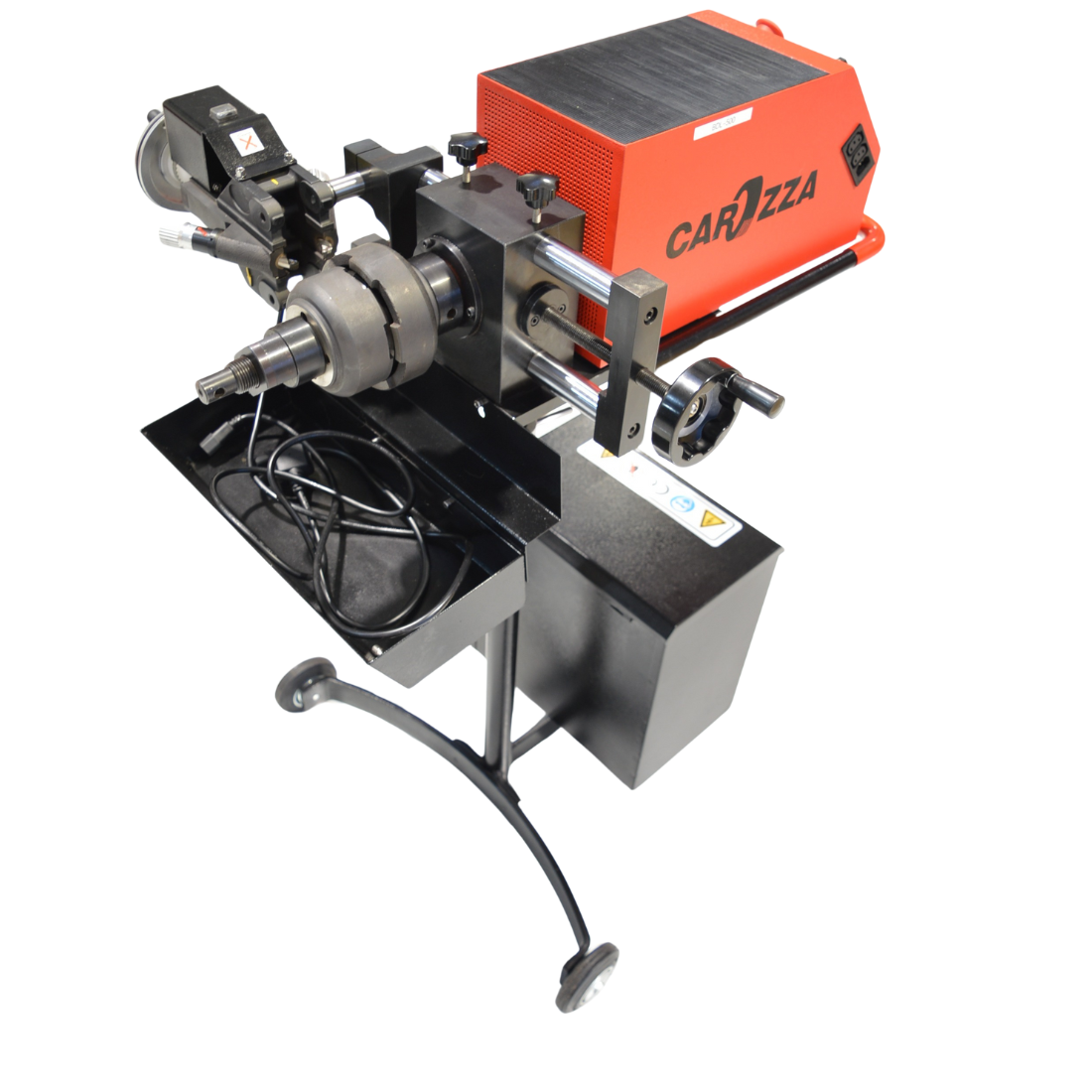

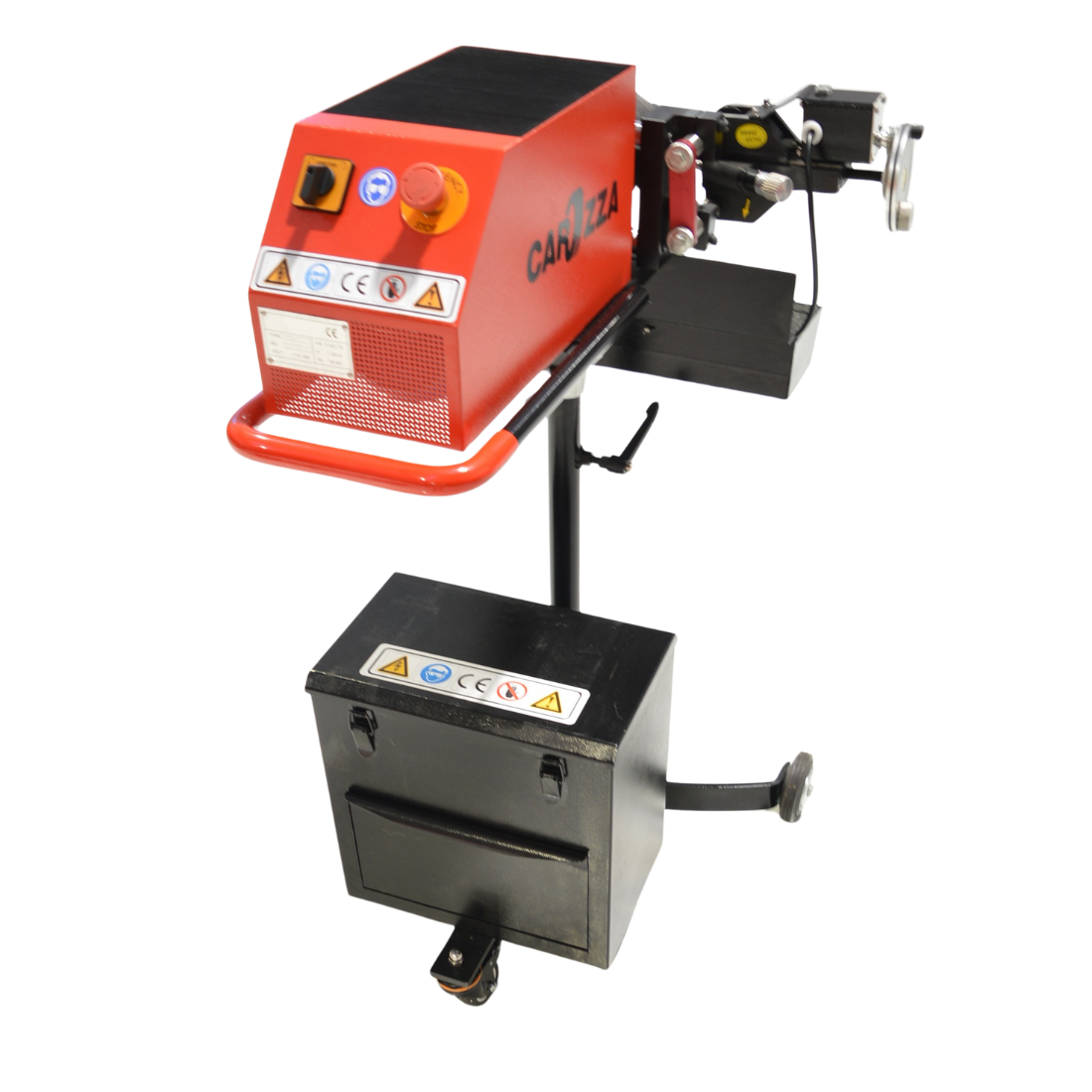

Carozza On And Off Car Brake Lathe BDL-500

Improve your automotive service capabilities with the BDL-500 Disc Brake Lathe, a precission-engineered solution designed for efficiency and accuracy. This state-of-the-art lathe is ideal for resurficing disc brakes, ensuring optimal performance and safety for your customers.

Key Features:

• High Precision Cutting: The BDL-500 utilizes advanced cutting technology to deliver a smooth finish, reducing vibration and noise while extending the lifespan of brake components.
• User-friendly interface: Equipped with an intuitive control panel, this lathe allows for easy operation and quick adjustments, making it suitable for both seasoned professionals and newcomers alike.
• Robust Construction: Built with durable materials, the BDL- 500 is designed to withstand the rigors of daily use, ensuring longevity and reliablity in busy workshop environments.
• Versatile Compatibility: This lathe can accomodate a wide range of disc sizes, making it a versatile addition any repair shop or service centre.
• Enhanced Efficency: With its fast setup and operation, the BDL-500 Disc Brake Lathe and experience unmatched performance and reliability. Perfect for any automotive professional looking to provide top-notch brake servicing.

Other Features:

• Basing on the actual axis of rotation,completely sove the problem of brake pedal judder ,brake disc rust,brake deviation and brake noise,
• Eliminate the assembly issues when disassembling and assembling the brake disc.
• On the car repair without the need of disassembling the brake disc to save labor and time. (on car can be done in most cases)
• lt is convenient for the technicians to compare the run-out tolerance before and after cutting brake disc.
• Save cost,powerfully shorten the repair time,and reduce client’s complaint.
• Cut the brake disc when replacing the brake pads, assure the brake effect and reduce the beed in time. and prolong the service life of brake disc and brake pads.
• Besides working on the car, BDL-500 can also work off-car. Any brake disc that is unable to be done with the on-car lathe. can be taken out and then lathe on BDL-500. Only a few installation steps are new and BDL-500 can be changed between on-car and off-car. That is more flexible and labor-efficient. Dual-functions on one machine are definitely a money-marking tool for all customers.

Specification:

• Working Height Min/Max: 780/1200mm
• Motor Power: 750W
• Thickness of Brake Disc: 6-40mm
• Cutting Precission: <0.00-0.003mm
• Gross Weight: 128kg
• Maximum Diameter of Brake Disc: 500mm
• Drive Speed: 150rpm
• Motor: 220v/50hz, 110v/60hz
• Cutting Depth Per Knob: 0.005-0.015mm
• Brake Disc Surface Roughness Ra: 1.5-2.0um
• Dimension: 910 x 510 x 310mm
• CE: Yes CE certified

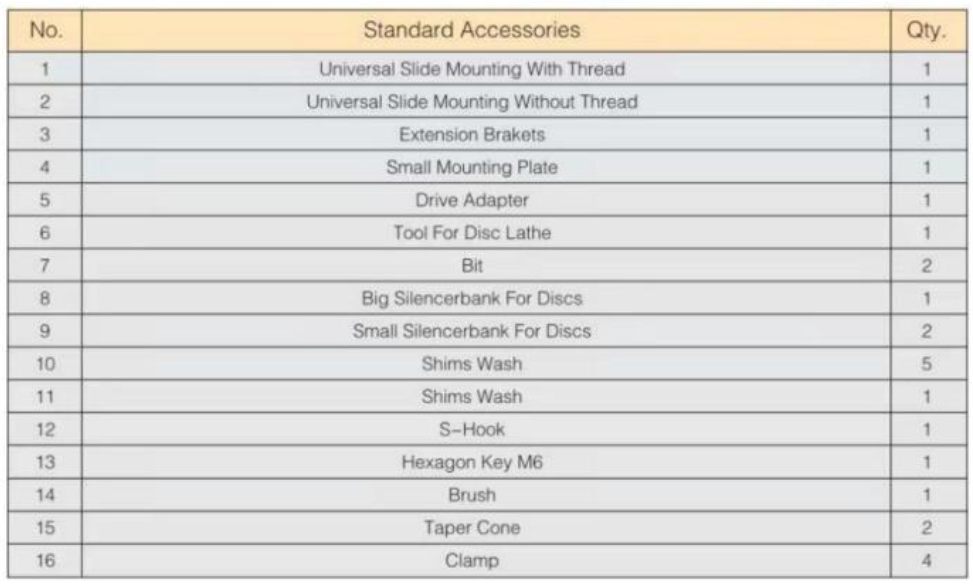

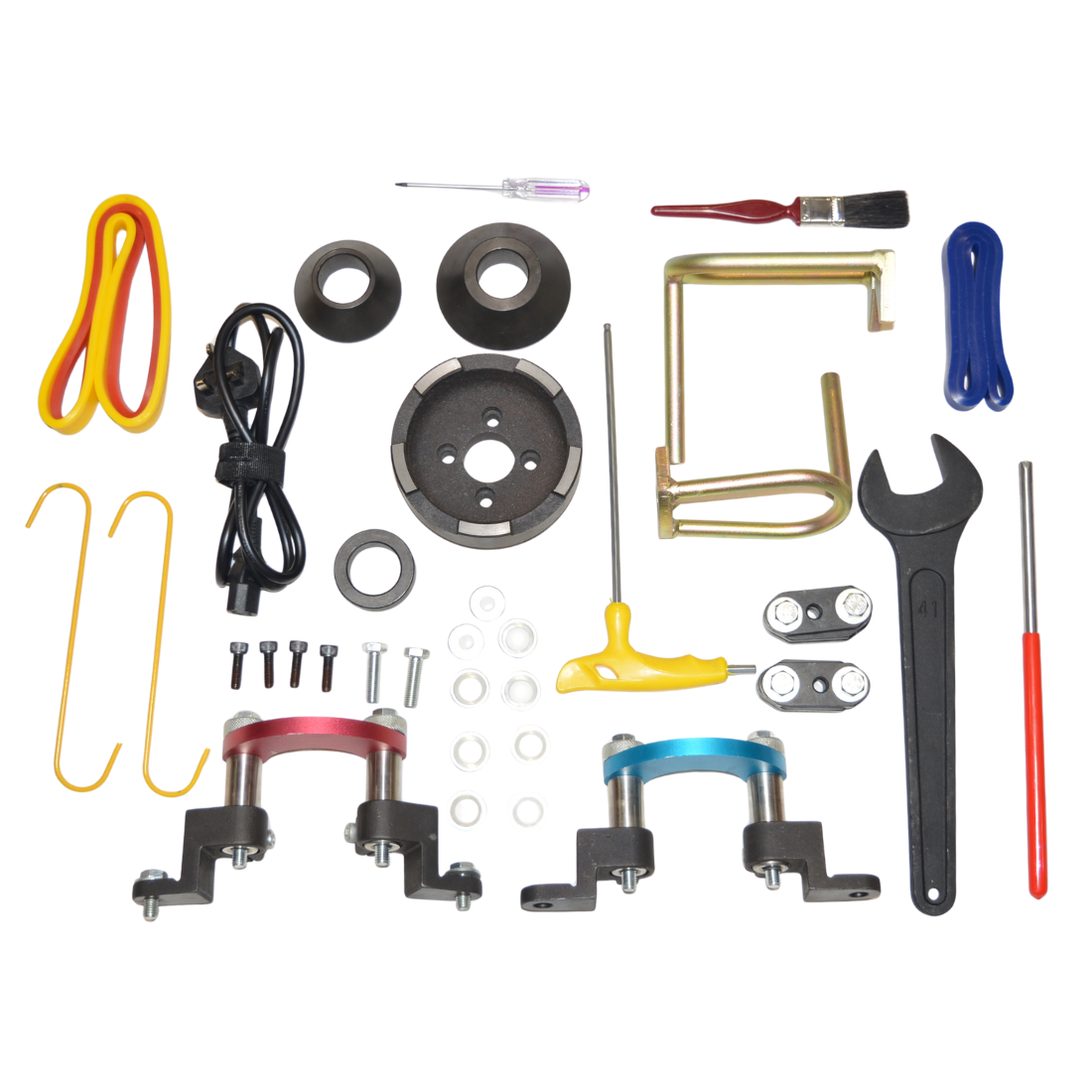

  Items included;
